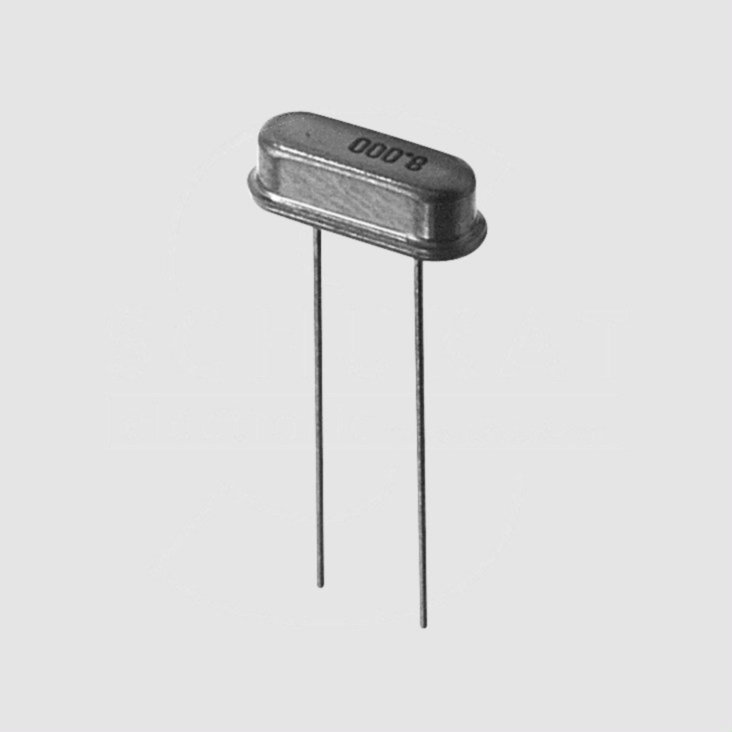

Miniature Crystal 4.332MHz

Varenummer:

115-020

Varekode:

QMIM004,332

Vægt:

0 g

Lagerstatus:

Lager: 1 stk.

Denne kombination eksistere ikke.

Køb

Technical Specifications



Temperature Range:	-10...+60°C
Frequency Tolerance (25°C):	±50ppm
Shunt Capacitance, Max.:	7pF
Drive Level:	1,0mW
Insulation Resistance (100V DC):	>500MW
Frequency Stability in Operating Temperature:	±50ppm
Frequency Range (Wave):	Fundamental
Aging:	±5ppm/Year


Part Nr.	Frequency	C	R_ESR
	[Hz]	[pF]	W
QMIM003,579	3.579.545	16	150
QMIM003,686	3.686.000	16	150
QMIM004	4.000.000	30	150
QMIM004,096	4.096.000	30	150
QMIM004,194	4.194.304	32	150
QMIM004,433	4.433.619	16	150
QMIM004,915	4.915.200	16	150
QMIM005	5.000.000	30	150
QMIM006	6.000.000	30	150
QMIM006,144	6.144.000	16	100
QMIM007,372	7.372.800	32	90
QMIM008	8.000.000	30	90
QMIM009,830	9.830.400	30	80
QMIM010	10.000.000	30	60
QMIM011,059	11.059.200	30	60
QMIM012	12.000.000	30	60
QMIM012,288	12.228.000	30	60
QMIM015	15.000.000	30	40
QMIM016	16.000.000	30	40
QMIM020	20.000.000	30	40
C = Load Capacitance, R_ESR = Resistance of Series Resonance, Max.

Manufacturer

Abundance
http://www.aeccrystal.com
