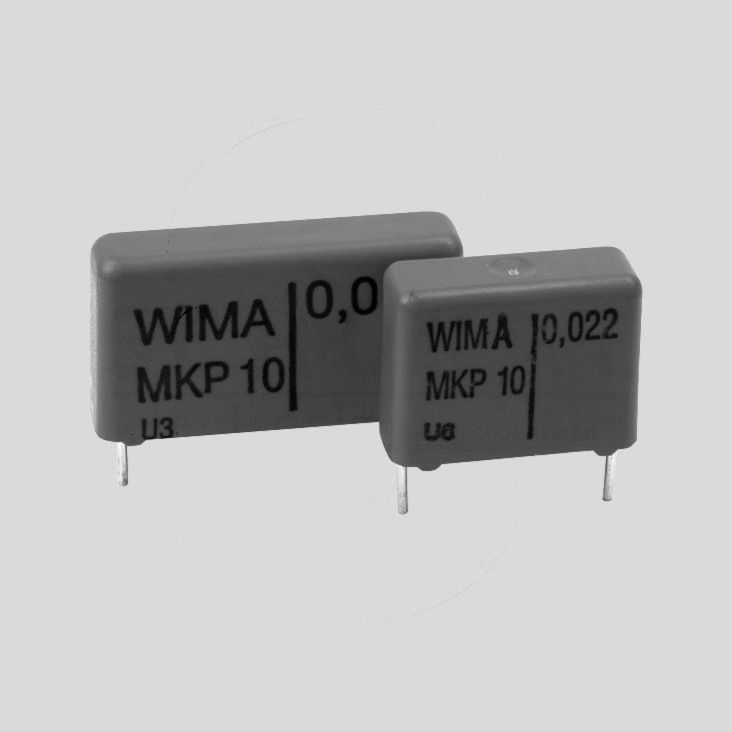

• Dielectric: Polypropylene film
• Capacitor electrodes: Double-sided metallized plastic film
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
• Terminations: tinned wire
• Pulse duty construction
• Self-healing
• Very low dissipation factor
• Negative capacitance change versus temperature
|
 |
For pulse applications e.g. switch mode power supplies, TV and monitor sets, lighting, audio/video equipment
|
|
|
|
|
Rated Voltages (UN):
|
see Table
|
Test Voltage (2s):
|
1,6xUN
|
Capacitance Tolerances:
|
±10%
|
Operating Temperature Range:
|
-55...+100°C
|
Climatic Test Category IEC:
|
55/100/56
|
Insulation Resistance
|
C%uFFFD330nF:
|
³100000MW
|
C>330nF:
|
³30000s
|
Failure Rate (40°C, 0,5 x UN):
|
1,0 fit1)
|
1) 1fit = 1x10 -9 Failure Components/Hour
|
|
|
|
|
|
|
|
|
|

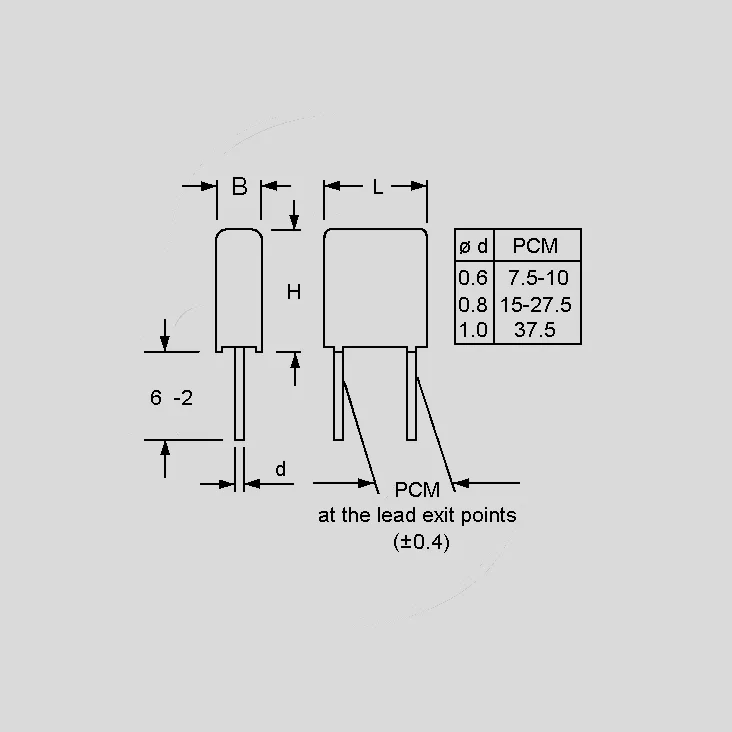

Part Nr.
|
CN
|
UN
|
Ueff
|
B
|
H
|
L
|
P
|
MKP10_
|
[nF/μF]
|
[V DC]
|
[V AC]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| N1,0K630-7 |
1,0
|
630
|
400
|
4,0
|
9,0
|
10,0
|
7,5
|
| N1,5K630-7 |
1,5
|
630
|
400
|
4,0
|
9,0
|
10,0
|
7,5
|
| N2,2K630-7 |
2,2
|
630
|
400
|
4,0
|
9,0
|
10,0
|
7,5
|
| N3,3K630-7 |
3,3
|
630
|
400
|
4,0
|
9,0
|
10,0
|
7,5
|
| N4,7K630-7 |
4,7
|
630
|
400
|
4,0
|
9,0
|
10,0
|
7,5
|
| N010K630-7 |
10
|
630
|
400
|
5,0
|
10,5
|
10,3
|
7,5
|
| N015K630-10 |
15
|
630
|
400
|
5,0
|
11,0
|
13,0
|
10,0
|
| N022K630-10 |
22
|
630
|
400
|
5,0
|
11,0
|
13,0
|
10,0
|
| N033K630-10 |
33
|
630
|
400
|
6,0
|
12,0
|
13,0
|
10,0
|
| N047K630-15 |
47
|
630
|
400
|
6,0
|
12,5
|
18,0
|
15,0
|
| N068K630-15 |
68
|
630
|
400
|
7,0
|
14,0
|
18,0
|
15,0
|
| N100K630-15 |
100
|
630
|
400
|
9,0
|
16,0
|
18,0
|
15,0
|
| N150K630-22 |
150
|
630
|
400
|
8,5
|
18,5
|
26,5
|
22,5
|
| N220K630-22 |
220
|
630
|
400
|
8,5
|
18,5
|
26,5
|
22,5
|
| N330K630-22 |
330
|
630
|
400
|
11,0
|
21,0
|
26,5
|
22,5
|
| N470K630-27 |
470
|
630
|
400
|
11,0
|
21,0
|
31,5
|
27,5
|
| N680K630-27 |
680
|
630
|
400
|
15,0
|
26,0
|
31,5
|
27,5
|
| U1,0K630-27 |
1,0
|
630
|
400
|
17,0
|
29,0
|
31,5
|
27,5
|
| U2,2K630-37 |
2,2
|
630
|
400
|
20,0
|
39,5
|
41,5
|
37,5
|
| U3,3K630-37 |
3,3
|
630
|
400
|
24,0
|
45,0
|
41,5
|
37,5
|
| N1,0K1K0-7 |
1,0
|
1000
|
600
|
4,0
|
9,0
|
10,0
|
7,5
|
| N2,2K1K0-7 |
2,2
|
1000
|
600
|
4,0
|
9,0
|
10,0
|
7,5
|
| N3,3K1K0-7 |
3,3
|
1000
|
600
|
4,0
|
9,0
|
10,0
|
7,5
|
| N4,7K1K0-7 |
4,7
|
1000
|
600
|
4,5
|
9,5
|
10,3
|
7,5
|
| N022K1K0-15 |
22
|
1000
|
600
|
6,0
|
12,5
|
18,0
|
15,0
|
| N033K1K0-15 |
33
|
1000
|
600
|
7,0
|
14,0
|
18,0
|
15,0
|
| N047K1K0-15 |
47
|
1000
|
600
|
8,0
|
15,0
|
18,0
|
15,0
|
| N100K1K0-22 |
100
|
1000
|
600
|
8,5
|
18,5
|
26,5
|
22,5
|
| N220K1K0-27 |
220
|
1000
|
600
|
11,0
|
21,0
|
31,5
|
27,5
|
| N33K1K0-27 |
330
|
1000
|
600
|
15,0
|
26,0
|
31,5
|
27,5
|
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
|
|
|
|
|
CN
|
F630V
|
F1000V
|
| |
[V/μs]
|
[V/μs]
|
| 1,0nF...2,2nF |
1800
|
2800
|
| 3,3nF...6,8nF |
1200
|
2800
|
| 10nF...22nF: |
1800
|
2100
|
| 33nF...68nF: |
1800
|
2100
|
| 100nF...220nF: |
900
|
1400
|
| 330nF...680nF: |
700
|
900
|
| 1,0μF...2,2μF: |
400
|
400
|
| 3,3μF...4,7μF: |
150
|
-
|
F630V = Pulse rise time for 630V, F1000V = Pulse rise time for 1000V
|
|
Dissipation Factor Tand (20°C)
|
|
|
|
|
| |
|
Measured at
|
|
| |
1kHz
|
10kHz
|
100kHz
|
| C |
%uFFFD3x10-4
|
%uFFFD4x10-4
|
%uFFFD15x10-4
|
| 100nF |
%uFFFD3x10-4
|
%uFFFD6x10-4
|
-
|
| C |
%uFFFD3x10-4
|
-
|
-
|
|
| Labelling |
Colour red, Marking: Black
Epoxy resin seal: colour red
|
|
|
