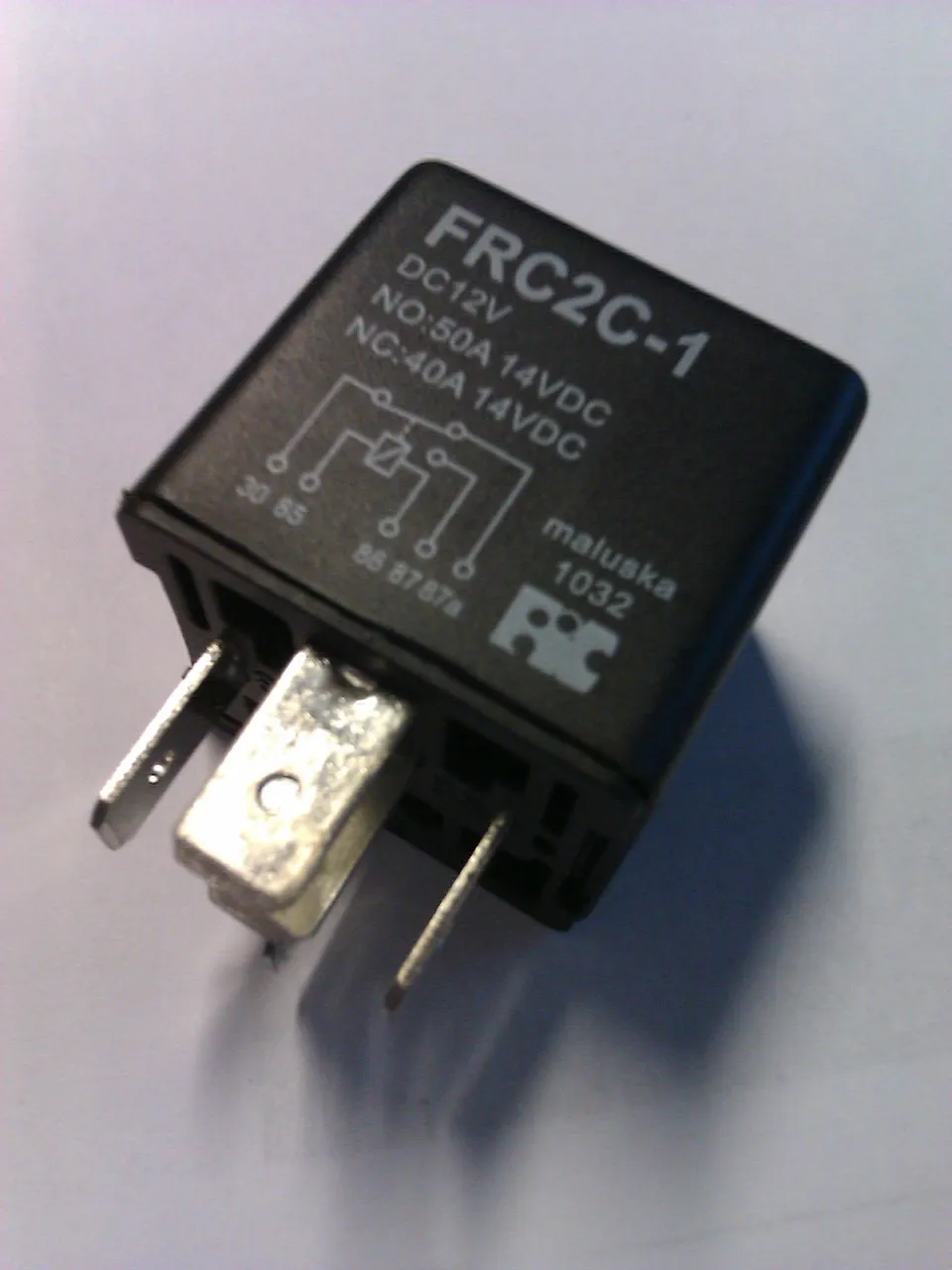

High Current Relay SPDT 50A 12V 80R 1xSkifte

Varenummer:

114-676

Varekode:

FRC2C-1-DC12V

Vægt:

50 g

Lagerstatus:

Ikke på lager

v/10

Kr. 43,88

v/100

Kr. 29,25

Denne kombination eksistere ikke.

Køb

Manufacturer	FORWARD INDUSTRIAL CO.
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	12V DC
Contact current max.	50A
DC contacts rating @R (at resistive load)	40A / 14V DC
Relay variant	automotive
Coil voltage min.	7.8V DC
Coil voltage max.	15.6V DC
Coil resistance	80Ω
Contact material	AgSnO₂
Operating temperature	-40...85°C
Body dimensions	26.5x29x29mm
Mounting	on panel, socket
Coil power consumption	1.8W
Relay series	FRC2
Contact resistance	30mΩ
Leads	6,3x0,8mm connectors
Mechanical durability	10000000 cycles
Weight	35g
Coil current	150mA
Operate time	7ms
Release time	5ms
Electrical life	100000 cycles
Related items	CS1-CW, RS-D03
Switched voltage	max. 75V DC

Stregkode: 114676
Intern reference: 114676
Varekode: FRC2C-1-DC12V
