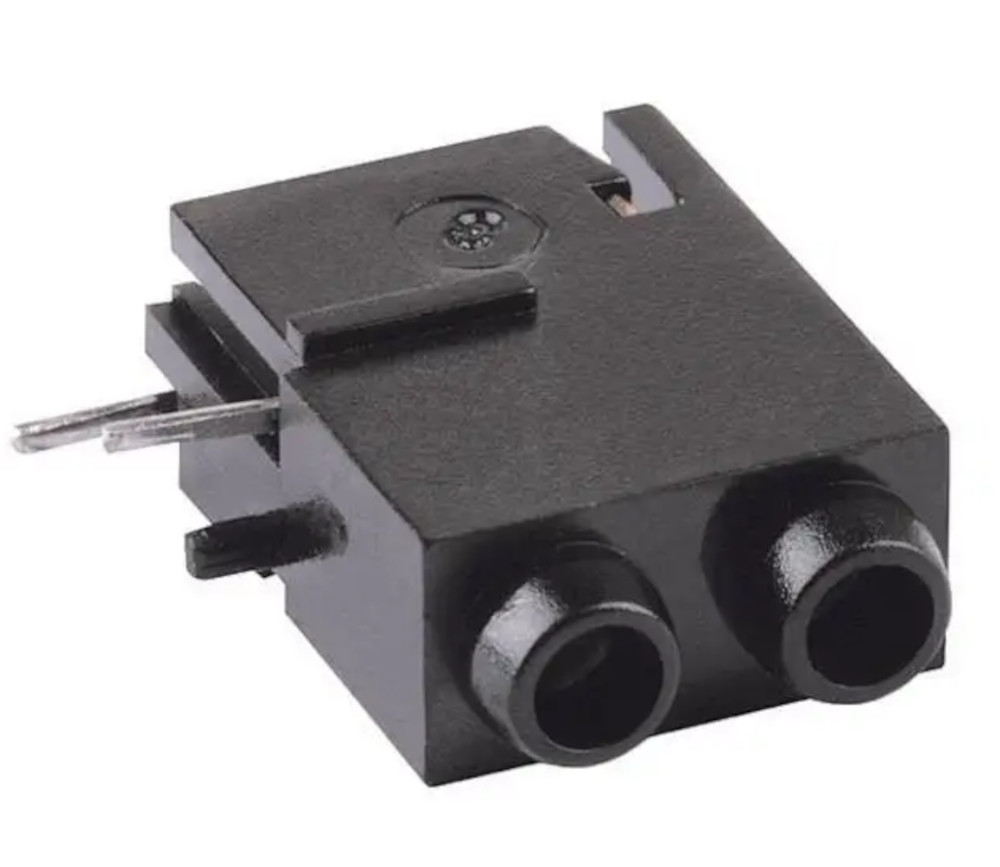

Mentor bananstikbøsning, Ø2mm, til printplade

These double insulated test terminals are suitable for connectors Ø2mm (2609 series and short circuit plug 2603.2221). The insulated test terminals are provided with lateral fins and grooves, which interlock when stacking the insulated test terminals thus guaranteeing stability on the printed circuit board in order to absorb the necessary insertion and withdrawing forces (DIN 41649 part 2). A plastic dowel serves as additional mechanical fixing point on the printed circuit board. The collar at the face of the component guarantees the mounting point at the front panel and preservation from short circuit between test terminal and front panel. Operating voltage: ≤60V Operating current: ≤1A Test voltage: 1000V/ 50Hz Volume resistance: ≤30mΩ Insulation class: VDE 0110 group C
