  6. KP/MMKP Capacitor 5,6nF 2000V 10% P22,5

KP/MMKP Capacitor 5,6nF 2000V 10% P22,5

Varenummer:
111-513
Varekode:
KP/MMKP1N5,6K2000-22
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 6,45 6.45 DKK kr 6,45 Inklusiv moms

kr 6,45 Inklusiv moms

Anmod os om en pris

v/10
Kr. 6,27
v/25
Kr. 5,91

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/40099/image_1920?unique=d50f5f3 https://elektroniklavpris.odoo.com/web/image/product.template/40099/image_1920?unique=d50f5f3

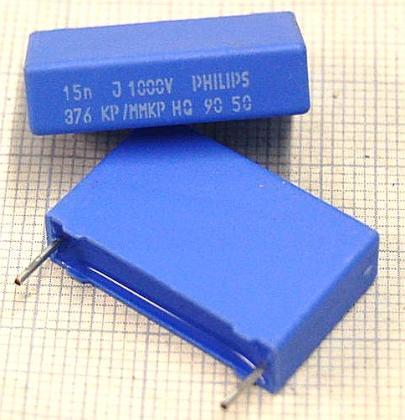

Fabrikat: Philips serie 376

Features
• Dielectric: Polypropylene film
• Capacitor electrodes: Double-sided metallized plastic film
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
• Terminations: tinned wire
• Pulse duty construction
• Self-healing
• Very low dissipation factor
• Negative capacitance change versus temperature
Typical Applications
For pulse applications e.g. switch mode power supplies, TV and monitor sets, lighting, audio/video equipment
Technical Specifications

Rated Voltages (UN): see Table
Test Voltage (2s): 1,6xUN
Capacitance Tolerances: ±10%
Operating Temperature Range: -55...+100°C
Climatic Test Category IEC: 55/100/56
Insulation Resistance
C�330nF: ³100000 MW
C>330nF: ³30000s
Failure Rate (40°C, 0,5 x UN): 1,0 fit1)
1) 1fit = 1x10 -9 Failure Components/Hour

Part Nr. CN UN Ueff B H L RM
FKP1_ [nF] [V DC] [V AC] [mm] [mm] [mm] [mm]
P100K2000-15 0,1 2000 700 5,0 11,0 18,0 15,0
P150K2000-15 0,15 2000 700 5,0 11,0 18,0 15,0
P220K2000-15 0,22 2000 700 5,0 11,0 18,0 15,0
P330K2000-15 0,33 2000 700 6,0 12,5 18,0 15,0
P470K2000-15 0,47 2000 700 6,0 12,5 18,0 15,0
P680K2000-15 0,68 2000 700 6,0 12,5 18,0 15,0
N1,0K1250-15 1,0 1250 600 5,0 11,0 18,0 15,0
N1,0K1600-15 1,0 1600 650 6,0 12,5 18,0 15,0
N1,0K2000-15 1,0 2000 700 7,0 14,0 18,0 15,0
N1,5K1250-15 1,5 1250 600 5,0 11,0 18,0 15,0
N1,5K1600-15 1,5 1600 650 7,0 14,0 18,0 15,0
N1,5K2000-22 1,5 2000 700 6,0 15,0 26,5 22,5
N2,2K1250-15 2,2 1250 600 5,0 11,0 18,0 15,0
N2,2K1600-15 2,2 1600 650 8,0 15,0 18,0 15,0
N2,2K2000-22 2,5 2000 700 7,0 16,5 26,5 22,5
N3,3K1250-15 3,3 1250 600 6,0 12,5 18,0 15,0
N3,3K1600-22 3,3 1600 650 6,0 15,0 26,5 22,5
N3,3K2000-22 3,3 2000 700 7,0 16,5 26,5 22,5
N4,7K1250-15 4,7 1250 600 7,0 14,0 18,0 15,0
N4,7K1600-22 4,7 1600 650 7,0 16,5 26,5 22,5
N4,7K2000-22 4,7 2000 700 8,5 18,5 26,5 22,5
N6,8K1600-22 6,8 1600 650 8,5 18,5 26,5 22,5
N6,8K2000-22 6,8 2000 700 10,5 20,5 26,5 22,5
N010K1600-22 10 1600 650 10,5 20,5 26,5 22,5
N010K2000-27 10 2000 700 11,0 21,0 31,5 27,5
N015K2000-27 15 2000 700 13,0 24,0 31,5 27,5
N022K2000-27 22 2000 700 15,0 26,0 31,5 27,5
N033K2000-37 33 2000 700 13,0 24,0 41,5 37,5
N047K2000-37 47 2000 700 17,0 29,0 41,5 37,5
N068K1000-27 68 1000 600 13,0 24,0 31,5 27,5
N068K2000-37 68 2000 700 19,0 32,0 41,5 37,5
N100K1250-37 100 1250 600 15,00 26,0 41,5 37,5
N150K1250-37 150 1250 600 17,0 29,0 41,5 37,5
N220K1250-37 220 1250 600 19,0 32,0 41,5 37,5
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
Pulse Rise Time

CN F1000V F1250V F1600V F2000V
  [V/μs] [V/μs] [V/μs] [V/μs]
0,1nF...0,22nF - - 56000 56000
0,33nF...0,68nF - - 51000 56000
1,0nF...2,2nF: 29000 29000 46000 51000
3,3nF...6,8nF: 27000 29000 29000 29000
10nF...22nF: 11000 11000 11000 13000
33nF...68nF 11000 11000 11000 11000
100F...220nF: 11000 11000 11000 -
F1000V...2000V = Pulse rise time for 1000...2000V
Dissipation Factor Tand (20°C)

    Measured at
  1kHz 10kHz 100kHz
C �3x10-4 �4x10-4 �10x10-4
100nF �3x10-4 �6x10-4 -
