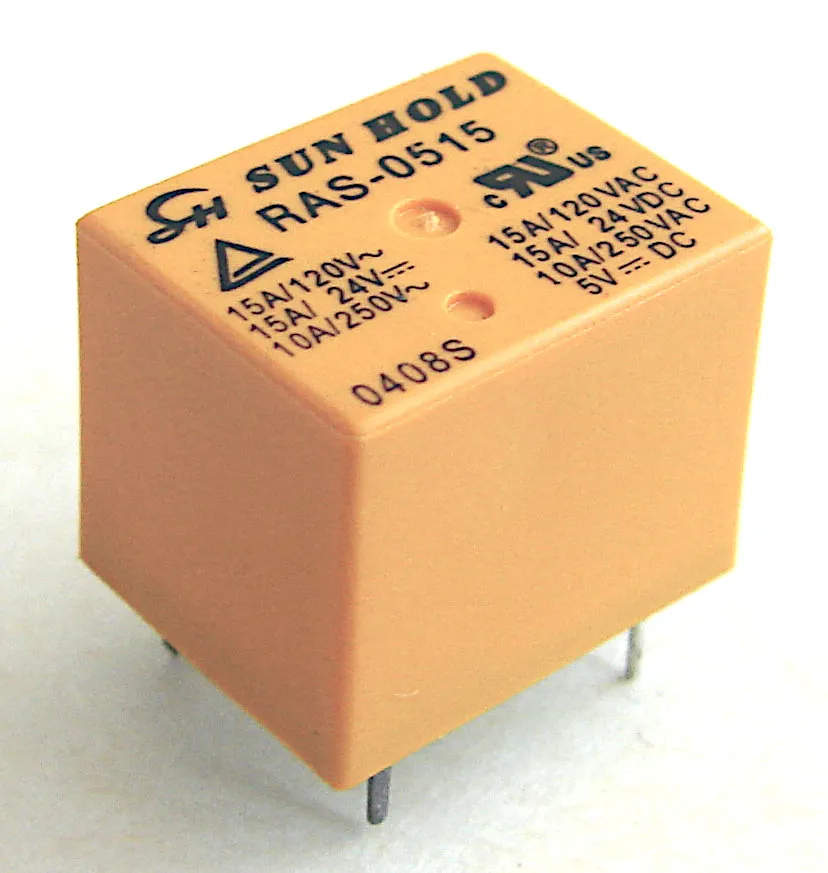

Relay SPDT 10A (15A@24V) 5V 70R

Varenummer:

110-872

Varekode:

RAS-0515

Vægt:

0 g

Lagerstatus:

Ikke på lager

Denne kombination eksistere ikke.

Køb

Features

• SPDT contact
• Wash tight enclosure
• High switching capacity 10A AC/DC (230V) - 15A AC (120V) /DC (24V)
• Relays protection class RTIII

Technical Specifications

Contact Data



Configuration:	SPDT
Contact Material:
F3611-_A:	AgCdO
Switching Power, Max.
DC1:	0,3A/110V DC; 10A/30V DC
AC1:	2500VA
AC15:	500VA
Switching Voltage, Max.:	250V
Switching Current, Max. (Resistive):	10A
Operating Life
Mechanical:	10x10⁶ Operations
Electrical (at 2500VA):	100x10³ Operations

Coil Data


Part Nr.	U_N	I_N	R_N	U_min.	U_max.
	[V DC]	[mA]	[W]	[V DC]	[V DC]
RAS-0515	5	72	70	3,7	7,5
U_N = Rated Voltage , I_N = Rated Current, R_N = Coil Resistance, U_min. = Minimum Voltage (+20°C),The Tolerance of the Rated Current and the Coil Resistance Amount to 10%, Umax. = Maximum Voltage (+20°C), The Tolerance of the Rated Current and the Coil Resistance Amount to 10%.

Approvals
