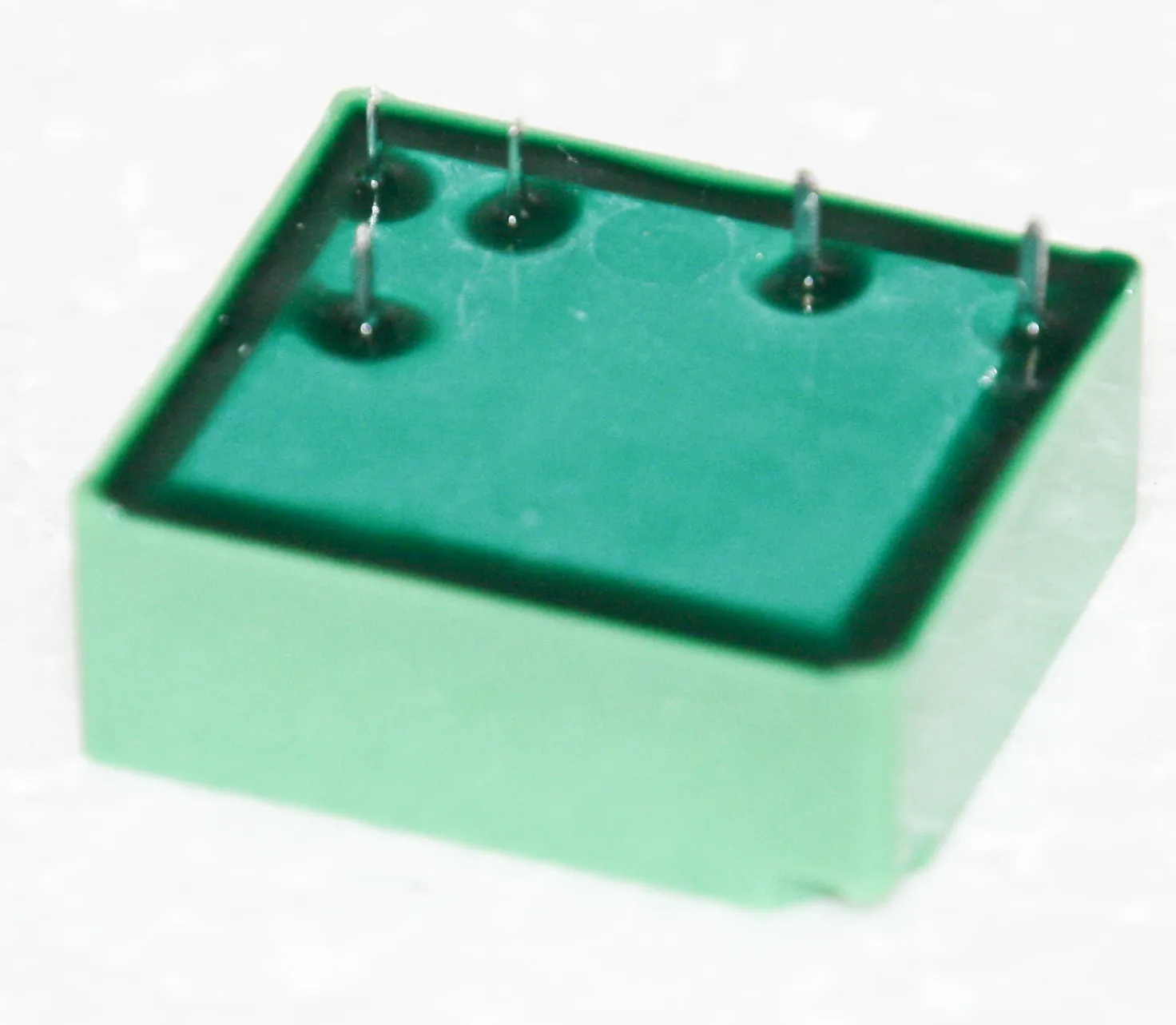

Relay SPDT 5A 4,8 47R Horisontal

Varenummer:
110-865
Varekode:
KRE4,8L
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 48,90 48.9 DKK kr 48,90 Inklusiv moms

kr 48,90 Inklusiv moms

Anmod os om en pris

v/10
Kr. 45,85
v/25
Kr. 37,50

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/39577/image_1920?unique=864978b https://elektroniklavpris.odoo.com/web/image/product.template/39577/image_1920?unique=864978b

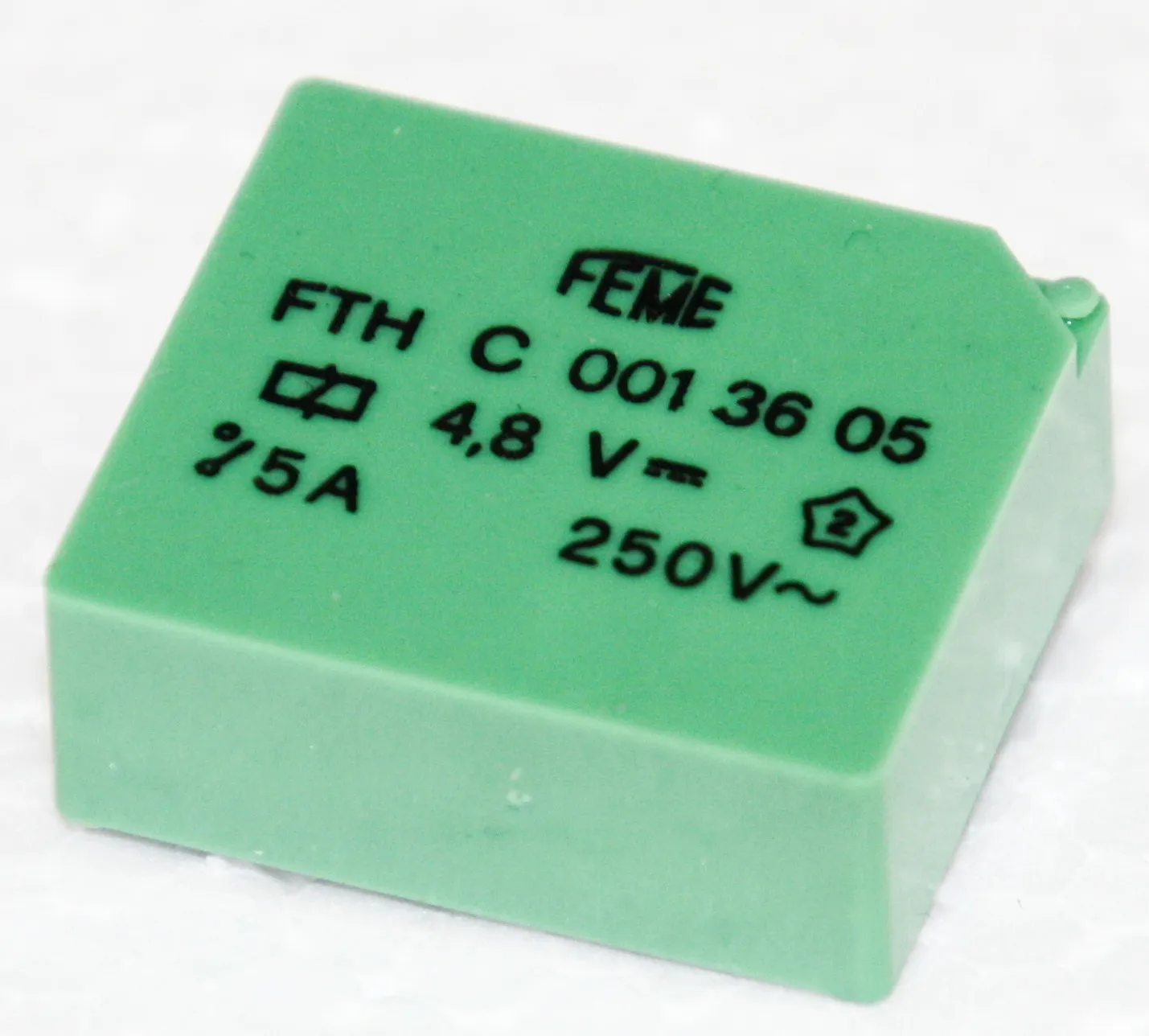

Kan også hedde: FEME FTHC0013605
Features
• SPDT
• Wash tight version (IP67)
• Conforms to: VDE 0435/9.72 "Regulations for electrical relays in power installations"
VDE 0631 "Rules and control for domestic use"
VDE 0860 "Electronic devices for domestic applications"
Technical Specifications
Insulation (According to VDE0110):
 B/380, C/250
Insulation Resistance, Max. (500V DC):
 >104MW
Dielectric Strength
Coil/Contact:
 4000Veff
Open Contact Circuit:
 1000Veff
Clearance/Creepage:
 4mm
Temperature Range (45...85% RH):
 -40...+70°C
Operate Time, Typ.:
 7ms
Release Time, Typ.:
 3ms
Bounce Time, Typ.:
 3ms
Weight:
 Approx. 20g
Contact Data
Contact Configuration:
 SPDT
Contact Type:
 Single Contact
Contact Material:
 AgCdO
Rated-Breaking Capacity (Ohmic Load):
 2000VA
Rated Voltage:
 250V AC
Breaking Voltage Max.:
 400V AC, 300V DC
Rated Current
 8A
Make Current (Max. 4s at 10% Duty Cycle):
 15A
Operating Life
Mechanical, Approx.:
 2x107 Operations
Electrical at Rated Load:
 1x105 Operations
Switching Frequency
Without Load:
 1200 Operations/Min
With Rated Load:
 30 Operations/Min
Coil Data
Coil Type:
 Monostable
Rated Voltage:
 See Table
Rated Power:
 450...500mW
Part Nr.
 UN
 UAn
 UAb
 IN
 RN
 Tol.
  [V DC]
 [V DC]
 [V DC]
 [mA]
 [W]
 [%]
KRE12_ 12
 8,3
 1,2
 36,4
 330
 ±33
KRE24_ 24
 16,8
 2,4
 20,0
 1200
 ±180
UN = Rated Voltage, UAn = Operate Voltage , UAb = Release Voltage, IN = Rated Current, RN = Coil Resistance, Tol. = Tolerance of Coil Resistance; All Specifications are Given for Coil without Preenergization, Ambient Temperature +20°C
Approvals

Manufacturer

http://www.schrackrelays.com
Kontakt os

Stregkode: 110865
Intern reference: 110865
Varekode: KRE4,8L
