Dig. Isol. 2Ch I²C 2,5kV 1MBd SO8
Varenummer:
108-800
Varekode:
ADUM1251ARZ
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
Y7555

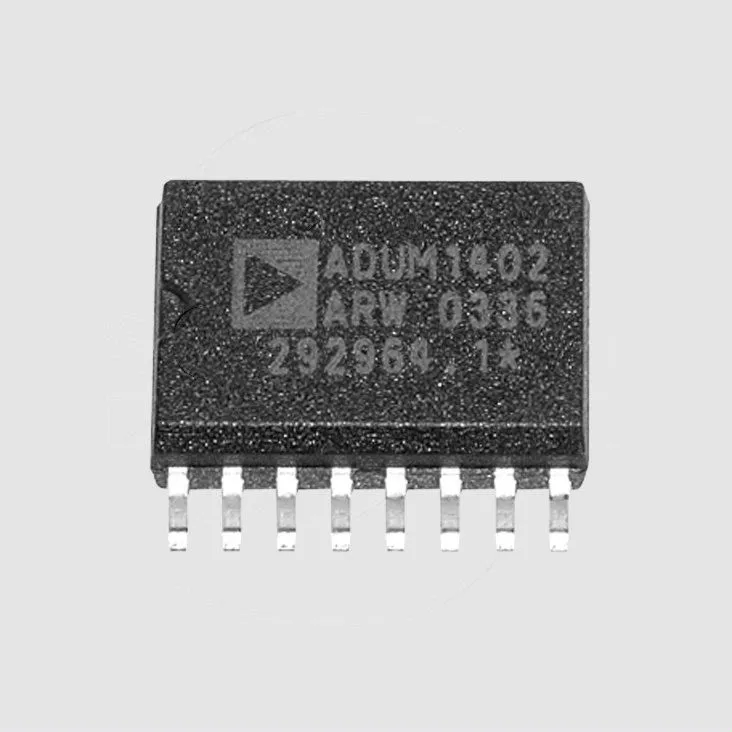

ANALOG DEVICES (AD) Digital Isolators
Series: ADUM_
Case: SO
ANALOG DEVICES (AD) Digital Isolators
Series: ADUM_
Case: SO
| Technical Specifications |
| • Low power operation (2,7...5,5V resp. 3,0...5,5V) • High common mode transient immunity: >25kV/µs • High temperature operation: -40...+105°C |
 |
| ADUM_ | Approvals | UISO | Channels | Data Rate | IDD5 | IDD3 |
| [V AC] | [MBd] | [mA] | [mA] | |||
| 1250ARZ | 1)2)3) | 2500 | 2 | DC...1 | 5,0 | 3,0 |
| 1251ARZ | 1)2)3) | 2500 | 2 | DC...1 | 6,0 | 3,0 |
| 1300ARWZ | 1)2)3)4) | 2500 | 3 | DC...1 | 2,5 | 1,7 |
| 1301ARWZ | 1)2)3)4) | 2500 | 3 | DC...1 | 2,1 | 1,4 |
| 1301BRWZ | 1)2)3)4) | 2500 | 3 | DC...10 | 6,2 | 3,7 |
| 1400ARWZ | 1)2)3)4) | 2500 | 4 | DC...1 | 2,8 | 1,9 |
| 1400CRWZ | 1)2)3)4) | 2500 | 4 | DC...90 | 100 | 65 |
| 1402ARWZ | 1)2)3)4) | 2500 | 4 | DC...1 | 2,1 | 1,5 |
| 1402CRWZ | 1)2)3)4) | 2500 | 4 | DC...90 | 62 | 39 |
| 2400ARWZ | 1)2)3) | 5000 | 4 | DC...1 | 2,8 | 1,9 |
| 2401ARWZ | 1)2)3) | 5000 | 4 | DC...1 | 2,4 | 1,6 |
| 2402ARWZ | 1)2)3) | 5000 | 4 | DC...1 | 2,1 | 1,5 |
| UISO = Isolation Voltage, IDD5 = Max. Supply Current Per Channel At US = 5V, IDD3 = Max. Supply Current Per Channel At US = 3V (ADUM125_ At 3,3V), US = Supply Voltage, 1) UL, 2) VDE, 3) CSA, 4) TÜV | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| Analog Devices http://www.analog.com |
|
Stregkode:
108800
Intern reference:
108800
Varekode:
ADUM1251ARZ
