Fiber Optic Transm. Diode 100μW + Hous.
Varenummer:
107-831
Varekode:
SFH757V
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
X6243
AVAGO TECHNOLOGIES Fiber Optic Transmitting Elements
Series: SFH_V
AVAGO TECHNOLOGIES Fiber Optic Transmitting Elements
Series: SFH_V
| Technical Specifications |

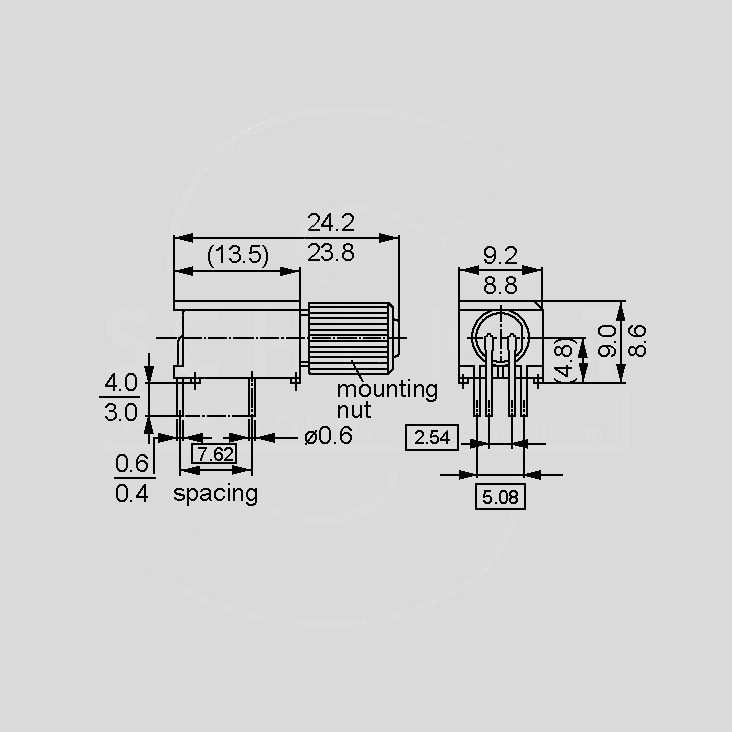

| • Transmitter LED with plastic conector housing, mounting screw included • 2,2mm aperture holds standard 1000micron plastic fiber • No fiber stripping required • Interference-free transmission from light-tight housing • Good linearity • No cross talk • Operating temperature range -40...+85°C |
 |
| Part Nr. | Pf | WL | tr | tf |
| [µW] | [nm] | [ns] | [ns] | |
| SFH756V | 100 | 660 | 100 | 100 |
| SFH757V | 100 | 650 | 15 | 18 |
| Pf = Min. Fiber Output Power, WL = Peak Emisssion Wavelength, tr = Typ. Rise Time, tf = Typ. Fall Time | ||||
| ||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
| Avago http://www.avagotech.com |
|
Stregkode:
107831
Intern reference:
107831
Varekode:
SFH757V
