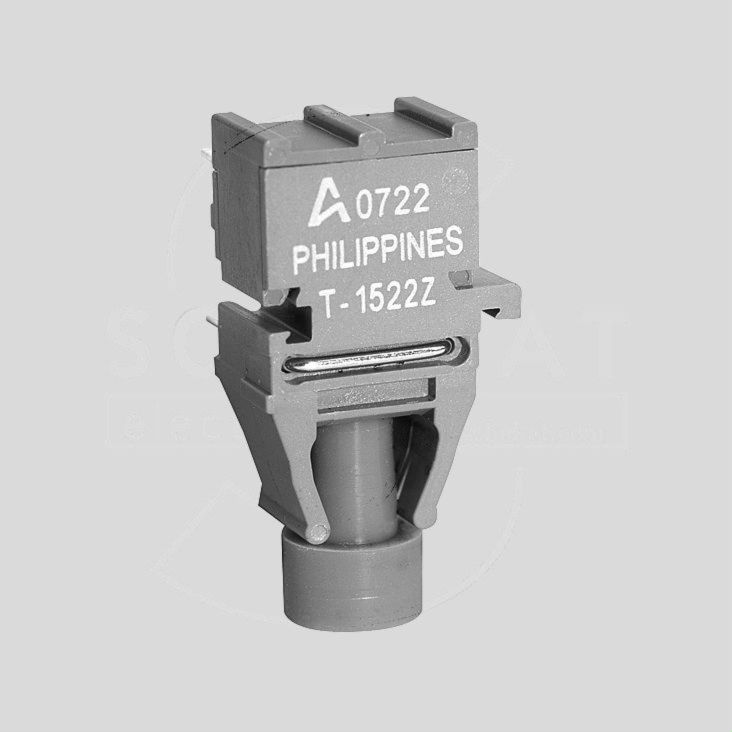

Fiber Optic Transm. Module -11,2dBm 1Mb/
Varenummer:
107-825
Varekode:
HFBR1522Z
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
X6215
AVAGO TECHNOLOGIES Fiber Optic Transmitting Modules
Series: HFBR15_Z
AVAGO TECHNOLOGIES Fiber Optic Transmitting Modules
Series: HFBR15_Z
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Max. solderability 260°C/10s • Operating temperature range -40...+85°C |
 |
| Part Nr. | Data Rate | Pf | WL | ICC |
| [Mb/s] | [dBm] | [nm] | [mA] | |
| HFBR1521Z | DC...5 | -14,3 | 660 | - |
| HFBR1522Z | DC...1 | -11,2 | 660 | - |
| HFBR1523Z | DC...0,04 | -11,2 | 660 | - |
| HFBR1531Z | DC...5 | -14,3 | 660 | - |
| HFBR1532Z | DC...1 | -11,2 | 660 | - |
| Pf = Min. Fiber Output Power, WL = Peak Emisssion Wavelength, ICC = Max. Supply Current | ||||
| ||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| Avago http://www.avagotech.com |
|
Stregkode:
107825
Intern reference:
107825
Varekode:
HFBR1522Z
