SMD TSPD bip 100A 220V SMB
Varenummer:
107-359
Varekode:
TB2600H
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V8872
LITEON SMD Thyristor Surge Protective Devices
Glass Passivated
Series: TA_, TB_

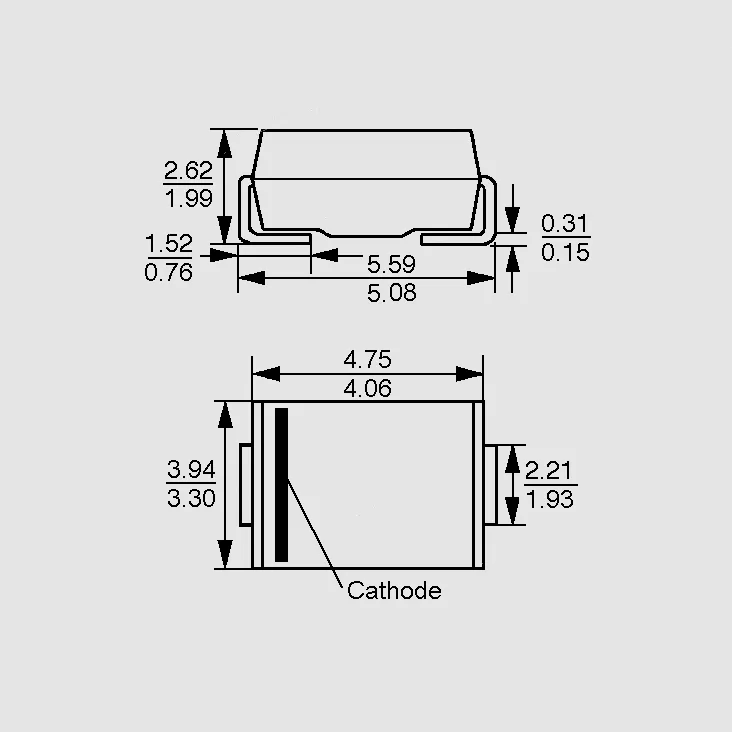

Case: DO214AC/SMA, DO214AA/SMB
LITEON SMD Thyristor Surge Protective Devices
Glass Passivated
Series: TA_, TB_
Case: DO214AC/SMA, DO214AA/SMB
| Technical Specifications |
| • Bidirectional protection in a single device • The plastic conforms to UL94V-0 |
 |
| Part Nr. | IR | @URM | UBOmax | IBO- | IBO+ | Ipp |
| [µA] | [V] | [V] | [mA] | [mA] | [A] | |
| TA0900L | 5 | 75 | 98 | 50 | 800 | 50 |
| TB0900L | 5 | 75 | 98 | 50 | 800 | 50 |
| TB0900M | 5 | 75 | 98 | 50 | 800 | 80 |
| TB0900H | 5 | 75 | 98 | 50 | 800 | 100 |
| TA2600L | 5 | 220 | 300 | 50 | 800 | 50 |
| TB2600L | 5 | 220 | 300 | 50 | 800 | 50 |
| TB2600M | 5 | 220 | 300 | 50 | 800 | 80 |
| TB2600H | 5 | 220 | 300 | 50 | 800 | 100 |
| TA4000L | 5 | 360 | 450 | 50 | 800 | 50 |
| TB4000L | 5 | 360 | 450 | 50 | 800 | 50 |
| TB4000M | 5 | 360 | 450 | 50 | 800 | 80 |
| TB4000H | 5 | 360 | 450 | 50 | 800 | 100 |
| IR = Max. Reverse Current, URM = Stand-Off Voltage, UBOmax = Max. Breakover Voltage, IBO- = Min. Breakover Current, IBO+ = Max. Breakover Current, Ipp = Reverse Peak Pulse Current | ||||||
| ||||||
| Terms of Delivery |

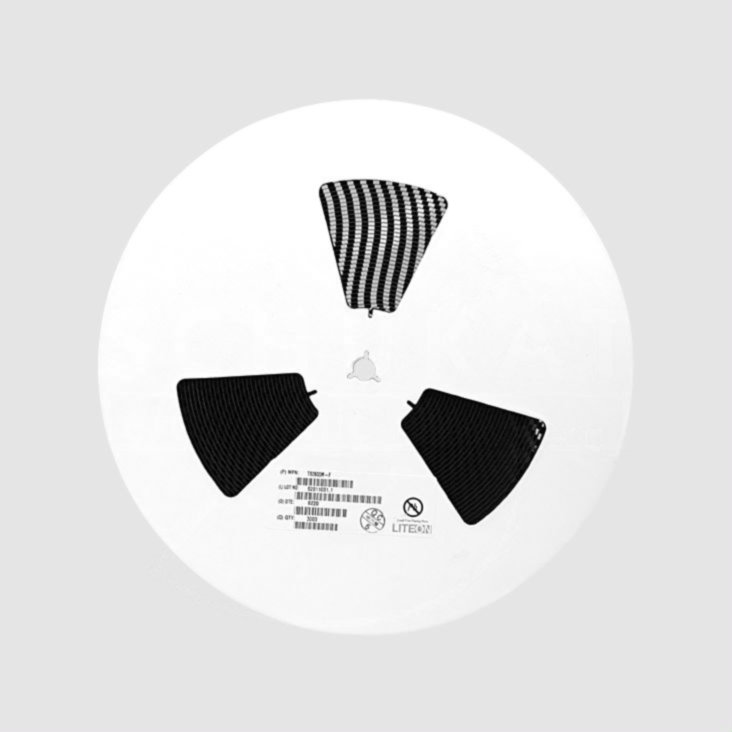

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 resp. 5000 pieces: 50 pieces on tape segment without leader tape and reel; orders of 3000 resp. 5000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://optoelectronics.liteon.com |
|
