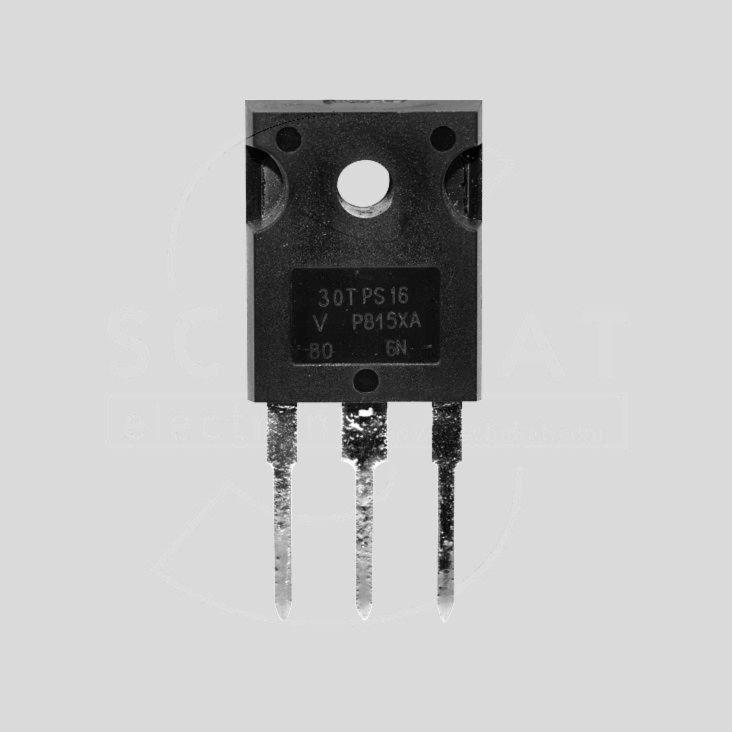

Thyristor 30A 1600V TO247AC
Varenummer:
107-315
Varekode:
30TPS16PBF
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
V8286
VISHAY (VIS) Thyristors up to 55A
Series: _TPS_
Case: TO247AC
VISHAY (VIS) Thyristors up to 55A
Series: _TPS_
Case: TO247AC
| Technical Specifications |
| Part Nr. | URRM | IT(RMS) | @TC | ITSM | IGT |
| [V] | [A] | [°C] | [A] | [mA] | |
| 30TPS08PBF | 800 | 30 | 95 | 250 | 45 |
| 30TPS16PBF | 1600 | 30 | 95 | 250 | 45 |
| 40TPS12APBF | 1200 | 55 | 79 | 500 | 150 |
| URRM = Max. Peak Recurrent Reverse Voltage, IT(RMS) = Max. RMS Forward Current, TC = Case Temperature, ITSM = Peak Forward Surge Current, IGT = Max. Gate Trigger Current | |||||
 | |||||
| Note |
| You will find suitable isolation assemblies and heatsinks in the blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants can be found in the red "Components & Devices" catalogue starting at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
| Vishay http://www.vishay.com |
|
Stregkode:
107315
Intern reference:
107315
Varekode:
30TPS16PBF
