Avalanche Diode 1200V 49A DO203AB
Varenummer:
107-226
Varekode:
DSA35-12A
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe:
V6255
IXYS Avalanche Diodes
Glass Passivated
Series: DSA_

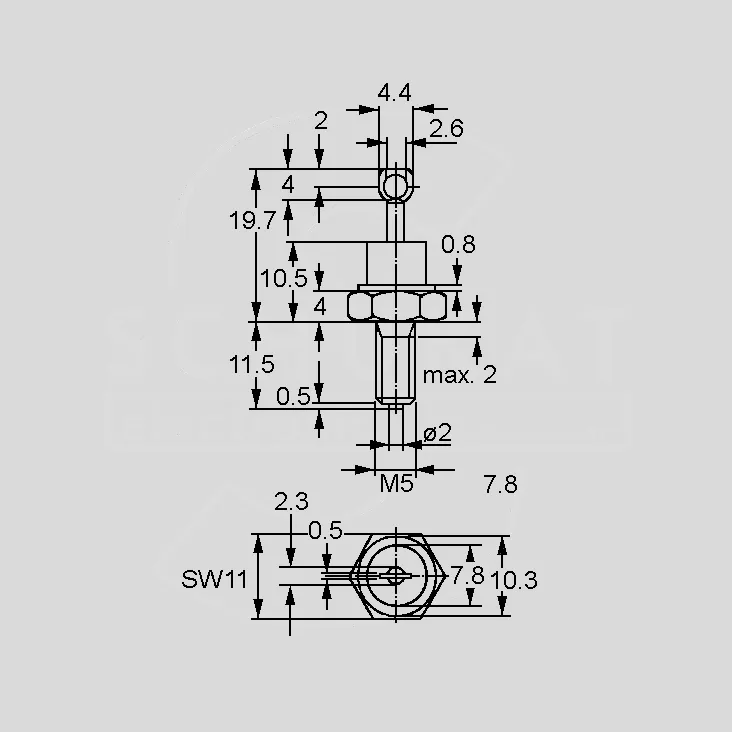

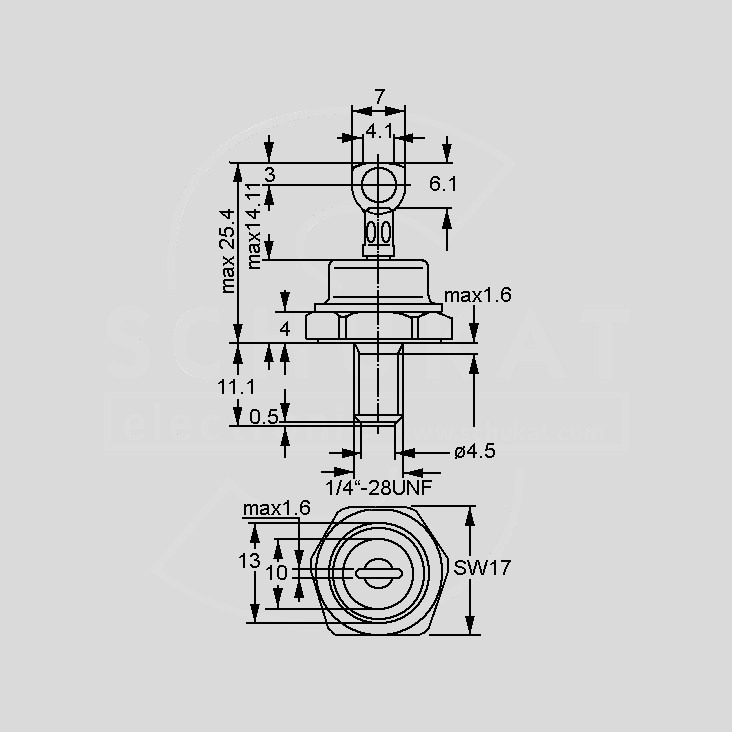

Case: DO203AA, DO203AB, FP-Case, Metal-Can
IXYS Avalanche Diodes
Glass Passivated
Series: DSA_
Case: DO203AA, DO203AB, FP-Case, Metal-Can
| Technical Specifications |
| Part Nr. | URRM | UF | IF(AV) | IR | Tj |
| [V] | [V] | [A] | [mA] | [°C] | |
| DSA1-16D | 1600 | 1,30 | 2,3 | 0,7 | -40...+150 |
| DSA2-16A | 1600 | 1,25 | 3,6 | 2,0 | -40...+180 |
| DSA9-12F | 1200 | 1,40 | 11 | 3,0 | -40...+180 |
| DSA17-12A | 1200 | 1,36 | 25 | 4,0 | -40...+180 |
| DSA17-16A | 1600 | 1,36 | 25 | 4,0 | -40...+180 |
| DSA35-12A | 1200 | 1,55 | 49 | 4,0 | -40...+180 |
| DSA35-16A | 1600 | 1,55 | 49 | 4,0 | -40...+180 |
| DSA75-16B | 1600 | 1,17 | 110 | 4,0 | -40...+180 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, Tj = Operating Temperature Range | |||||
 | |||||
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
