SMD TVS Diode Bip 600W 30V SMB
Varenummer:
107-197
Varekode:
SMBJ30CA
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V5476
TAIWAN SEMICONDUCTOR (TSC) SMD Transient Voltage Suppressor Diodes 600W
Glass Passivated
Series: SMBJ_

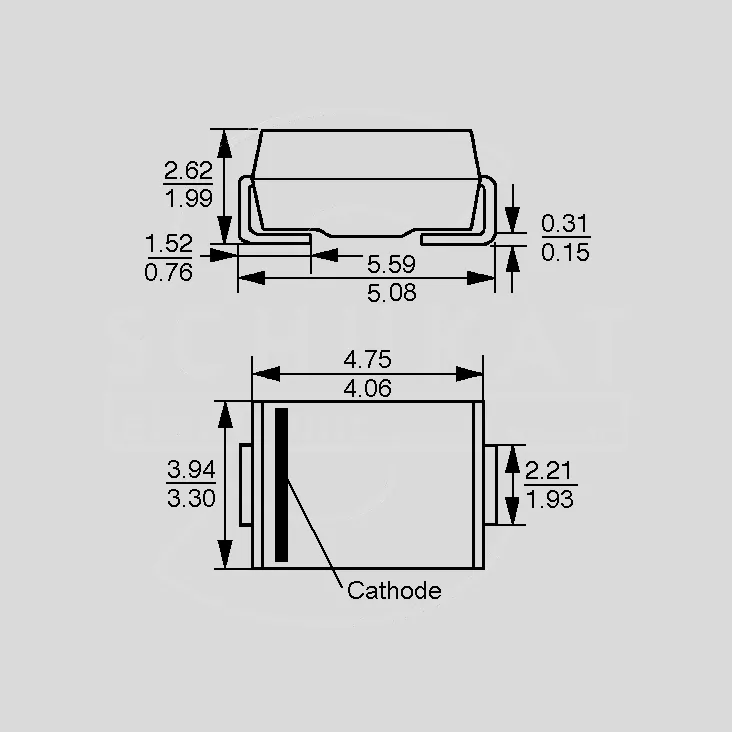

Case: DO214AA/SMB
TAIWAN SEMICONDUCTOR (TSC) SMD Transient Voltage Suppressor Diodes 600W
Glass Passivated
Series: SMBJ_
Case: DO214AA/SMB
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Max. solderability 260°C/10s |
 |
| Part Nr. | IR | @URM | UBR | @IR | UCL | @Ipp |
| [µA] | [V] | [V] | [mA] | [V] | [A] | |
| SMBJ5.0A | 800 | 5,0 | 6,40 | 10 | 9,2 | 68 |
| SMBJ9.0A | 10 | 9,0 | 10,0 | 1 | 15,4 | 40 |
| SMBJ12A | 5 | 12,0 | 13,3 | 1 | 19,9 | 31 |
| SMBJ15A | 5 | 15,0 | 16,7 | 1 | 24,4 | 25,1 |
| SMBJ30A | 5 | 30,0 | 33,3 | 1 | 48,4 | 13 |
| SMBJ5.0CA | 800 | 5,0 | 6,40 | 10 | 9,2 | 68 |
| SMBJ12CA | 5 | 12,0 | 13,3 | 1 | 19,9 | 31 |
| SMBJ15CA | 5 | 15,0 | 16,7 | 1 | 24,4 | 25,1 |
| SMBJ30CA | 5 | 30,0 | 33,3 | 1 | 48,4 | 13 |
| IR = Max. Reverse Current, URM = Stand-Off Voltage, UBR = Min. Breakdown Voltage, UCL = Max. Clamping Voltage, Ipp = Reverse Peak Pulse Current | ||||||
| ||||||
| Terms of Delivery |

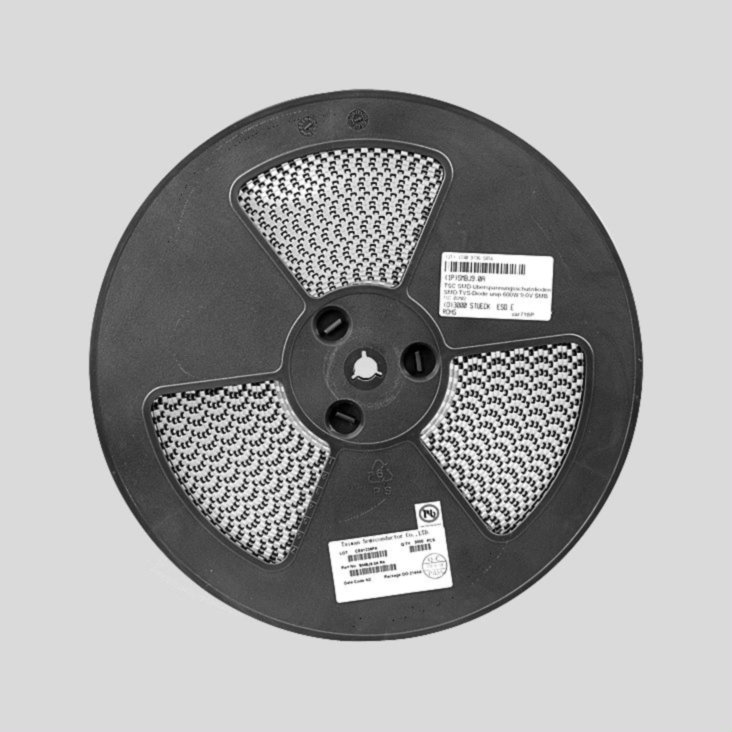

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 25 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
