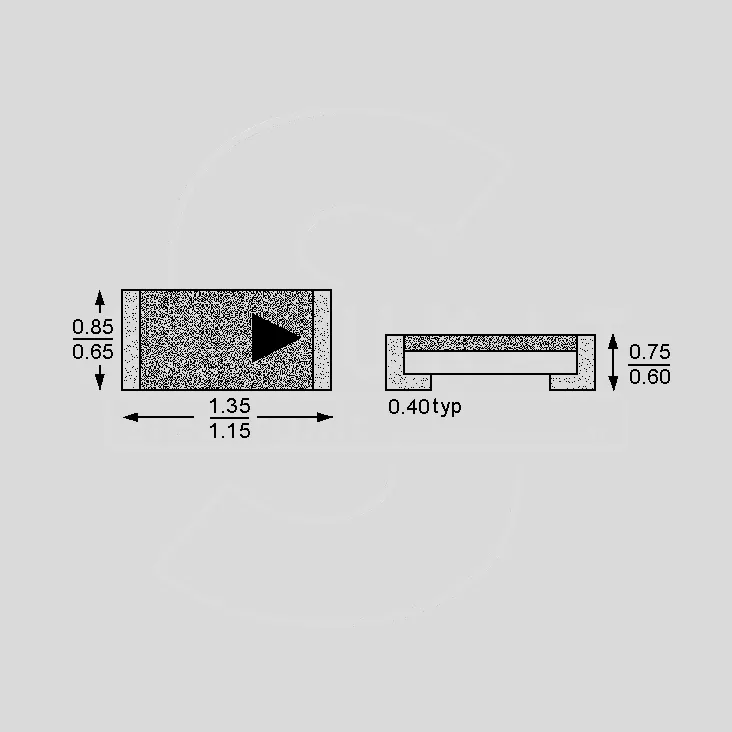

SMD ESD Diode Bip 16kV 14V 1005

Varenummer:

107-169

Varekode:

TESDL12V

Vægt:

0 g

Lagerstatus:

Ikke på lager

v/100

Kr. 1,24

v/8000

Kr. 0,74

Denne kombination eksistere ikke.

Technical Specifications

• (16kV) ICE61000-4-2 rating
• Leads solderable per MIL-STD-750, Meth. 2026
• Max. solderability 260°C/10s


Part Nr.	I_R	@U_R	U_BR	U_CL	@U_ESD	I_pp
	[μA]	[V]	[V]	[V]	[kV]	[A]
TESDE5V0	2,0	5,0	5,1	7,0	8	5,1
TESDU5V0	2,0	5,0	5,1	7,0	8	5,1
TESDL5V0	2,0	5,0	5,1	7,0	8	5,1
TESDE12V	2,0	12	14	17	8	15
TESDU12V	2,0	12	14	17	8	15
TESDL12V	2,0	12	14	17	8	15
TESDE25V	2,0	24	25	25	8	15
TESDU25V	2,0	24	25	25	8	15
TESDL25V	2,0	24	25	25	8	15
I_R = Max. Reverse Current, U_R = Reverse Voltage, U_BR = Min. Breakdown Voltage, U_CL = Max. Clamping Voltage, U_ESD = ESD Voltage, I_pp = Reverse Peak Pulse Current

Manufacturer

http://www.taiwansemi.com
