SMD ESD Diode Bip 16kV 5,1V 0603
Varenummer:
107-165
Varekode:
TESDU5V0
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V5175
TAIWAN SEMICONDUCTOR (TSC) SMD ESD-Protection Diodes 16kV
Series: TESDU_

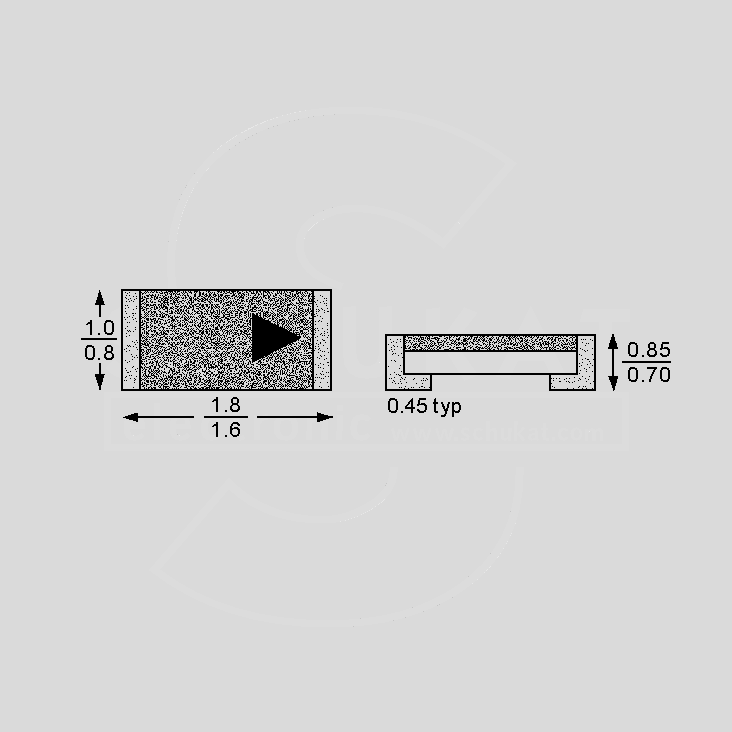

Case: 0603
TAIWAN SEMICONDUCTOR (TSC) SMD ESD-Protection Diodes 16kV
Series: TESDU_
Case: 0603
| Technical Specifications |
| • (16kV) ICE61000-4-2 rating • Leads solderable per MIL-STD-750, Meth. 2026 • Max. solderability 260°C/10s |
 |
| Part Nr. | IR | @UR | UBR | UCL | @UESD | Ipp |
| [µA] | [V] | [V] | [V] | [kV] | [A] | |
| TESDU5V0 | 2,0 | 5,0 | 5,1 | 7,0 | 8 | 5,1 |
| TESDU12V | 2,0 | 12 | 14 | 17 | 8 | 15 |
| TESDU24V | 2,0 | 24 | 25 | 25 | 8 | 15 |
| IR = Max. Reverse Current, UR = Reverse Voltage, UBR = Min. Breakdown Voltage, UCL = Max. Clamping Voltage, UESD = ESD Voltage, Ipp = Reverse Peak Pulse Current | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 4000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 4000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
