Schottky 200V 10A(2x5) ITO220AB
Varenummer:
107-136
Varekode:
MBRF10H200CT
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V3536
TAIWAN SEMICONDUCTOR (TSC) Schottky Diodes 10A to 20A
Series: MBRF_CT

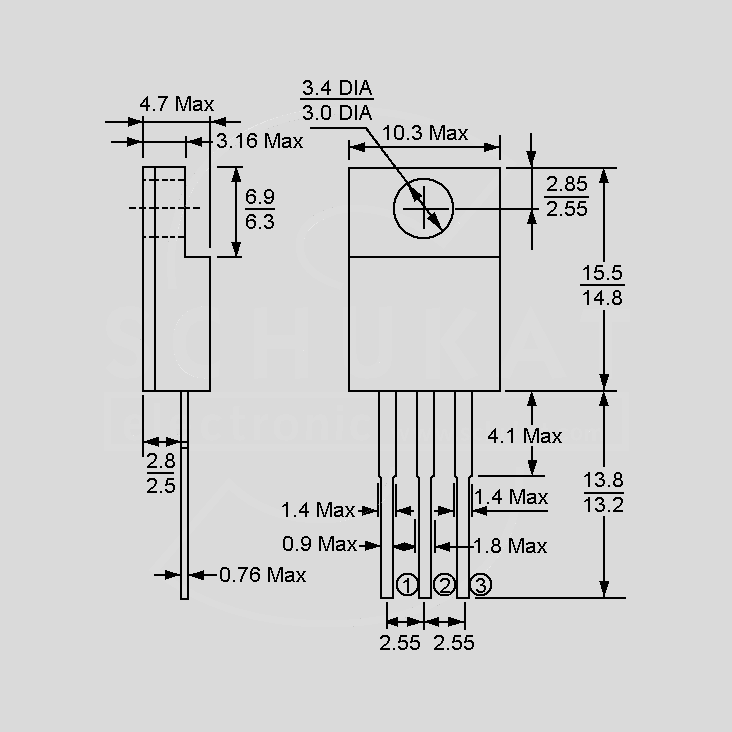

Case: ITO220AB
TAIWAN SEMICONDUCTOR (TSC) Schottky Diodes 10A to 20A
Series: MBRF_CT
Case: ITO220AB
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Leads solderable per MIL-STD-750, Meth. 2026 • Max. solderability 260°C/10s • Min. isolation voltage 1500V • Operating temperature range -65...+175°C |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [A] | [µA] | [°C] | |
| MBRF10H100CT | 100 | 0,95 | 5,0 | 5,0 | -65...+175 |
| MBRF20H100CT | 100 | 0,95 | 10 | 5,0 | -65...+175 |
| MBRF20H200CT | 200 | 0,97 | 10 | 5,0 | -65...+175 |
| per Diode: URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
107136
Intern reference:
107136
Varekode:
MBRF10H200CT
