SMD Schottky 50V 15mA SOD123
Varenummer:
107-090
Varekode:
SD101BW
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V3378
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes up to 0,5A
Series: B_W, BAT_W, SD_W

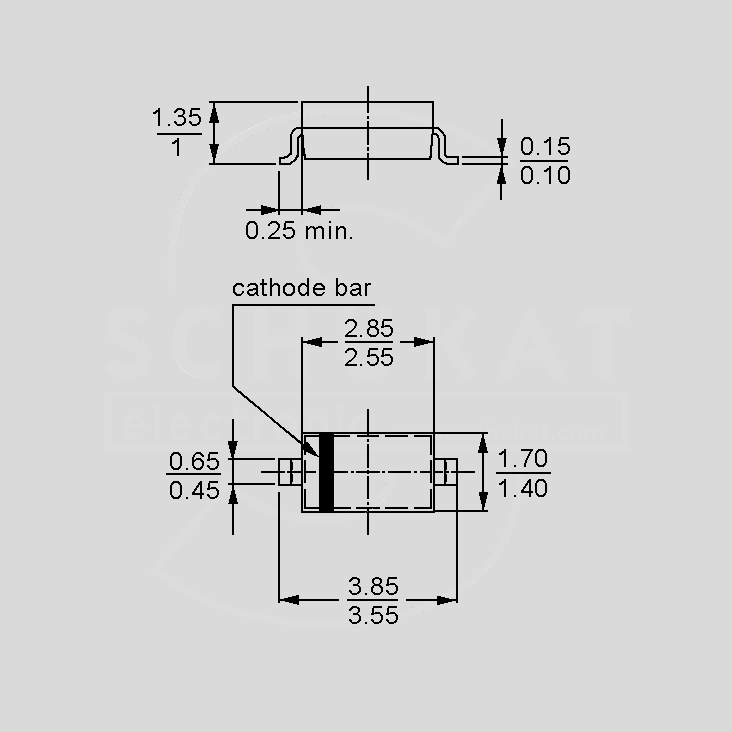

Case: SOD123
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes up to 0,5A
Series: B_W, BAT_W, SD_W
Case: SOD123
| Technical Specifications |
| • Leads solderable per MIL-STD-202, Meth. 208 |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [mA] | [µA] | [°C] | |
| B0540W | 40 | 0,51 | 500 | 20 | -65...+125 |
| BAT42W | 30 | 1,0 | 200 | 0,5 | -65...+125 |
| SD101BW | 50 | 0,6 | 15 | 0,2 | -65...+125 |
| SD103BW | 30 | 0,95 | 350 | 5,0 | -65...+125 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
