SMD Schottky 30V 0,2A 0603
Varenummer:
107-082
Varekode:
TSS54U
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V3375
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes up to 0,5A
Series: TSS_U

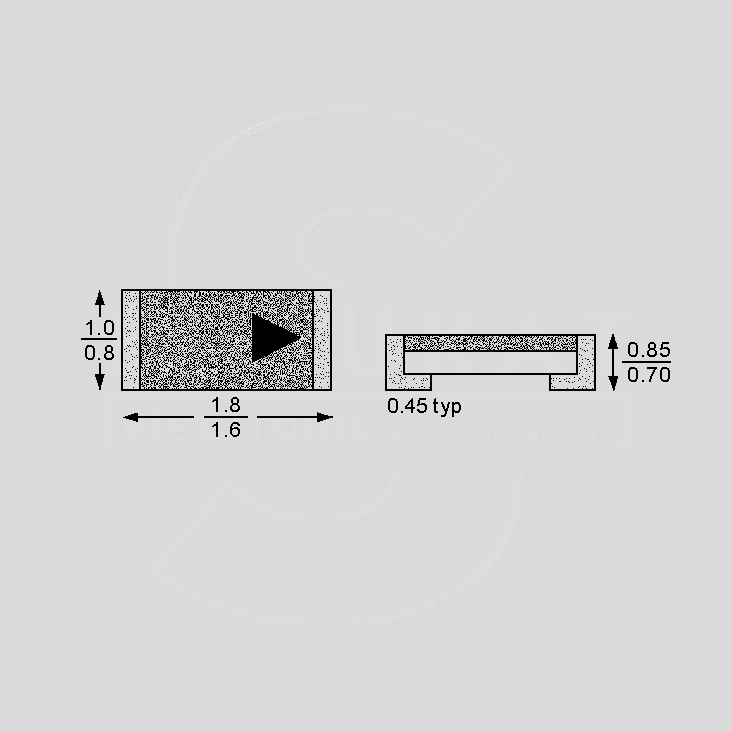

Case: 0603
TAIWAN SEMICONDUCTOR (TSC) SMD Schottky Diodes up to 0,5A
Series: TSS_U
Case: 0603
| Technical Specifications |
| • Leads solderable per MIL-STD-750, Meth. 2026 • Max. solderability 260°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [mA] | [µA] | [°C] | |
| TSS40U | 40 | 1,0 | 200 | 0,2 | -65...+125 |
| TSS42U | 30 | 1,0 | 200 | 0,5 | -65...+125 |
| TSS43U | 30 | 1,0 | 200 | 0,5 | -65...+125 |
| TSS54U | 30 | 1,0 | 200 | 2,0 | -65...+125 |
| TSS70U | 70 | 1,0 | 70 | 0,1 | -65...+125 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |

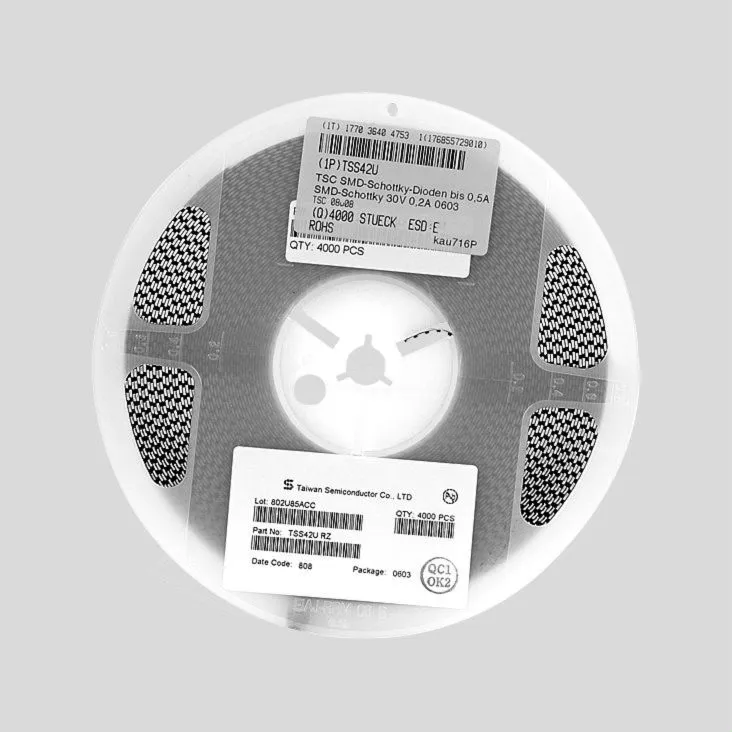

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 4000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 4000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
107082
Intern reference:
107082
Varekode:
TSS54U
