SMD Super Fast Diode 400V 3A SMC
Varenummer:
107-034
Varekode:
ES3G
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V2675
TAIWAN SEMICONDUCTOR (TSC) SMD Super Fast Rectifier Diodes 3A Glass Passivated
Series: ES3_
Case: DO214AB/SMC
TAIWAN SEMICONDUCTOR (TSC) SMD Super Fast Rectifier Diodes 3A Glass Passivated
Series: ES3_
Case: DO214AB/SMC
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Max. solderability 260°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| ES3D | 200 | 0,95 | 3,0 | 100 | 10 | 35 |
| ES3F | 300 | 1,3 | 3,0 | 100 | 10 | 35 |
| ES3G | 400 | 1,3 | 3,0 | 100 | 10 | 35 |
| ES3J | 600 | 1,7 | 3,0 | 100 | 10 | 35 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time | ||||||
| ||||||
| Terms of Delivery |

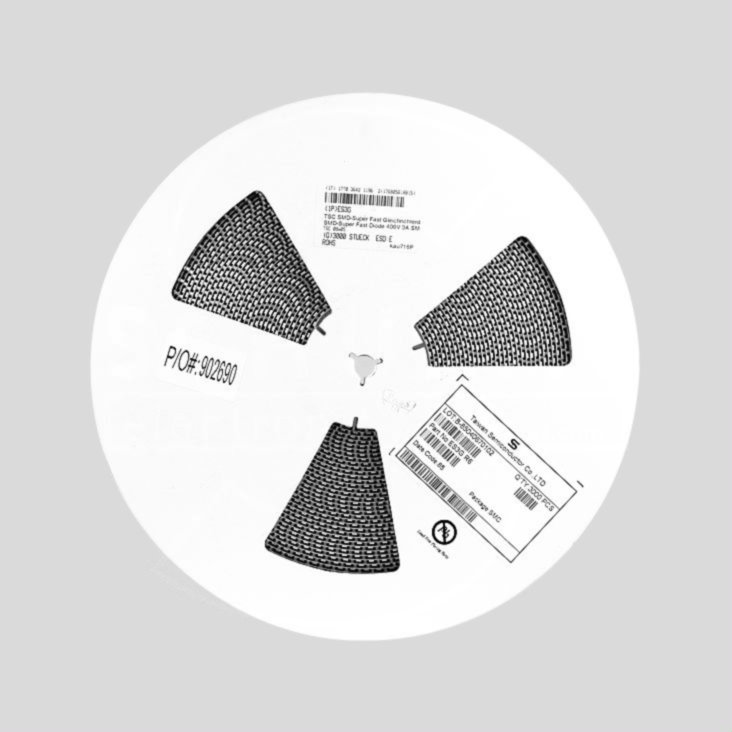

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 25 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
107034
Intern reference:
107034
Varekode:
ES3G
