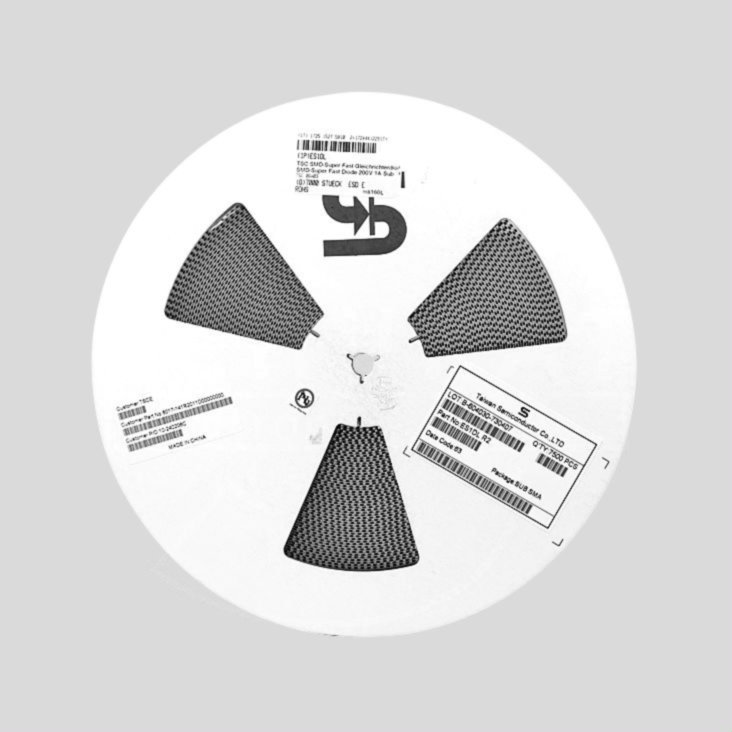

SMD Super Fast Diode 400V 1A Sub-SMA
Varenummer:
107-028
Varekode:
ES1GL
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V2575
TAIWAN SEMICONDUCTOR (TSC) SMD Super Fast Rectifier Diodes 1A Glass Passivated
Series: ES1_L
Case: DO219AB/Sub-SMA
TAIWAN SEMICONDUCTOR (TSC) SMD Super Fast Rectifier Diodes 1A Glass Passivated
Series: ES1_L
Case: DO219AB/Sub-SMA
| Technical Specifications |
| • Low-profile package • Low power loss • Max. solderability 260°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| ES1DL | 200 | 0,95 | 1,0 | 30 | 5,0 | 35 |
| ES1GL | 400 | 1,3 | 1,0 | 30 | 5,0 | 35 |
| ES1JL | 600 | 1,7 | 1,0 | 30 | 5,0 | 35 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 7500 pieces: 100 pieces on tape segment without leader tape and reel; orders of 7500 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
107028
Intern reference:
107028
Varekode:
ES1GL
