SMD Si-Rectifier 50V 0,8A Sub-SMA
Varenummer:
107-015
Varekode:
RS1AL
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V2272
TAIWAN SEMICONDUCTOR (TSC) SMD Fast Rectifier Diodes 0,8A Glass Passivated
Series: RS1_L
Case: DO219AB/Sub-SMA
TAIWAN SEMICONDUCTOR (TSC) SMD Fast Rectifier Diodes 0,8A Glass Passivated
Series: RS1_L
Case: DO219AB/Sub-SMA
| Technical Specifications |
| • Low-profile package • The plastic conforms to UL94V-0 • Max. solderability 260°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| RS1AL | 50 | 1,3 | 0,8 | 30 | 5,0 | 150 |
| RS1GL | 400 | 1,3 | 0,8 | 30 | 5,0 | 150 |
| RS1JL | 600 | 1,3 | 0,8 | 30 | 5,0 | 250 |
| RS1ML | 1000 | 1,3 | 0,8 | 30 | 5,0 | 500 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time | ||||||
| ||||||
| Terms of Delivery |

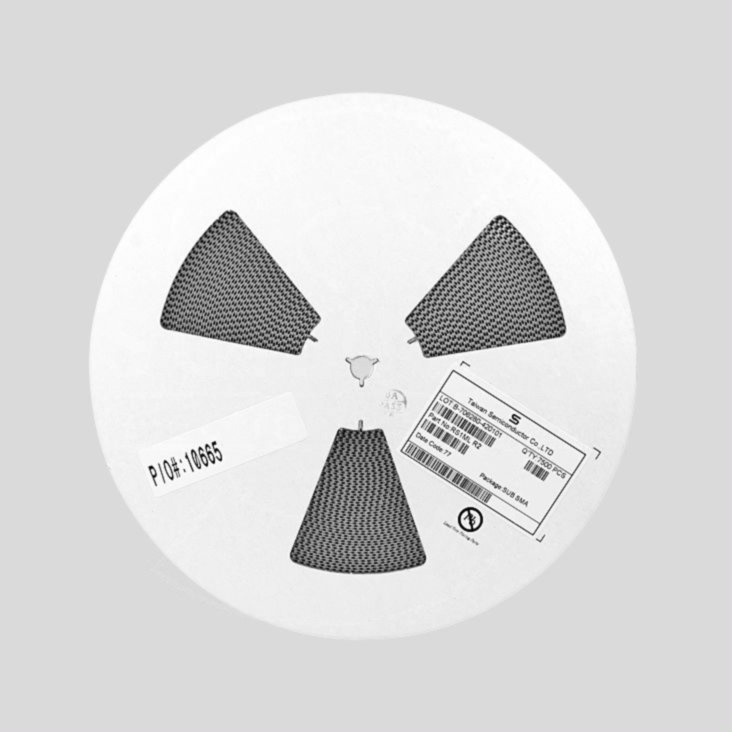

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 7500 pieces: 500 pieces on tape segment without leader tape and reel; orders of 7500 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
