SMD Si-Rectifier 1200V 30A D²Pak
Varenummer:
107-013
Varekode:
DSI30-12AS
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V1875
IXYS SMD Si-Rectifier Diodes 30A
Series: DSI_AS

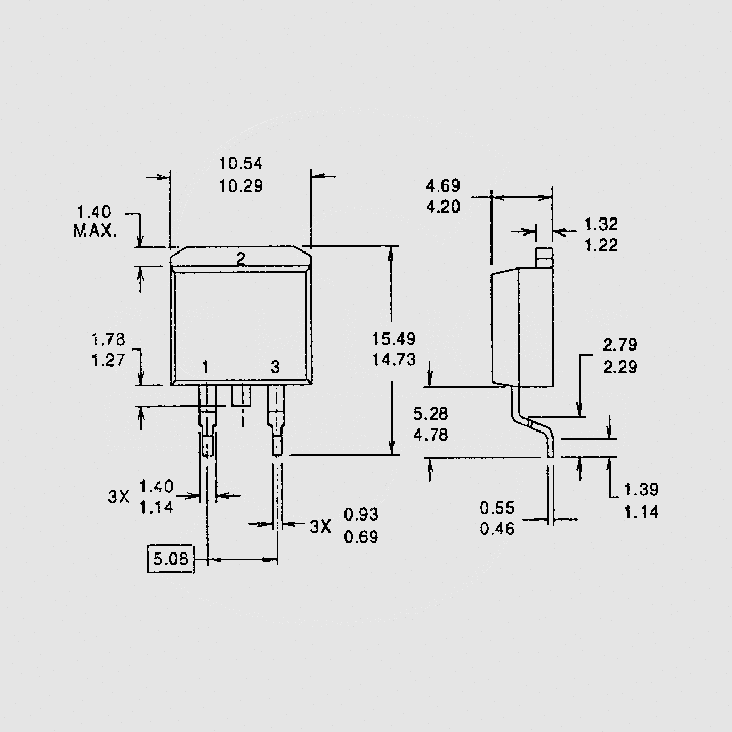

Case: D²Pak
IXYS SMD Si-Rectifier Diodes 30A
Series: DSI_AS
Case: D²Pak
| Technical Specifications |
| • The plastic conforms to UL94V-0 |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | Tj |
| [V] | [V] | [A] | [mA] | [°C] | |
| DSI30-12AS | 1200 | 1,45 | 30 | 1,0 | -40...+150 |
| DSI30-16AS | 1600 | 1,45 | 30 | 1,0 | -40...+150 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, Tj = Operating Temperature Range | |||||
| |||||
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
