Si-Rectifier 600V 25A ARS
Varenummer:
107-011
Varekode:
ARS25J
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V1855
TAIWAN SEMICONDUCTOR (TSC) Si-Rectifier Diodes 25A
Series: ARS25_

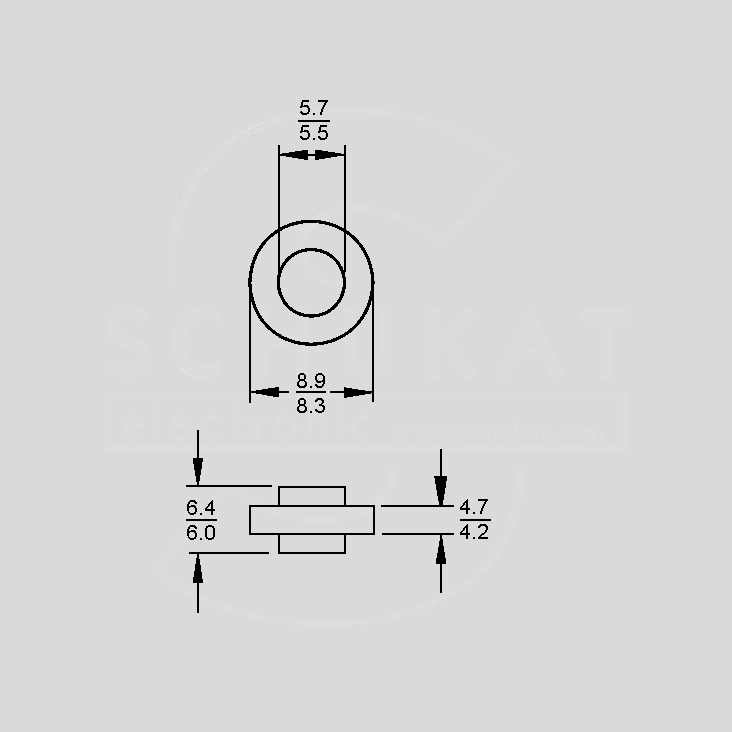

Case: ARS
TAIWAN SEMICONDUCTOR (TSC) Si-Rectifier Diodes 25A
Series: ARS25_
Case: ARS
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Terminals solderable per MIL-STD-202, Meth. 208 • Max. solderability 260°C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IR | Tj |
| [V] | [V] | [A] | [µA] | [°C] | |
| ARS25G | 400 | 1,0 | 25 | 5,0 | -50...+175 |
| ARS25J | 600 | 1,0 | 25 | 5,0 | -50...+175 |
| ARS25M | 1000 | 1,0 | 25 | 5,0 | -50...+175 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, Tj = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
