P-Ch 30V 7,5A 2,5W 0,03R SO8
Varenummer:
106-949
Varekode:
SI4431BDY-E3
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
U8783
VISHAY (VIS) SMD Power MOSFETs
Series: SI_Y-E3

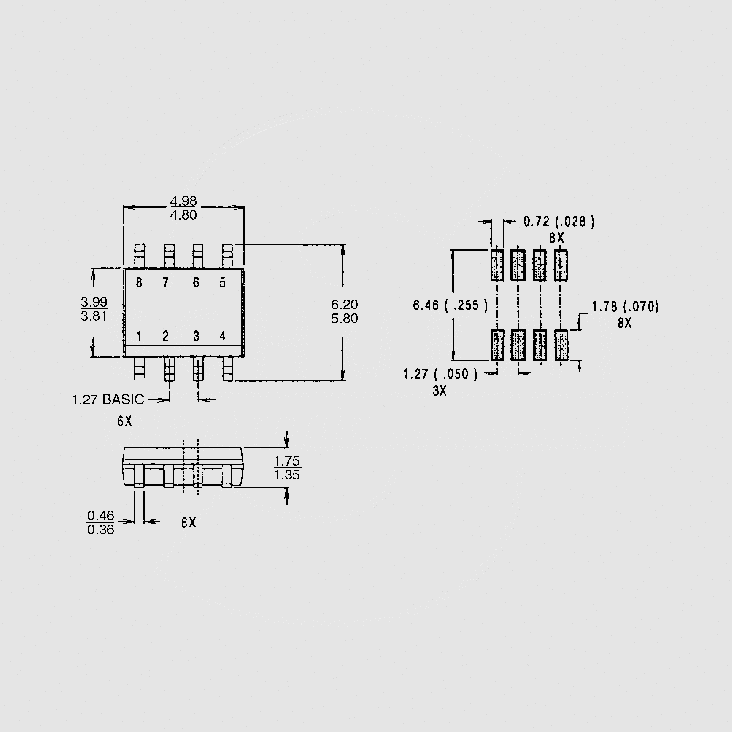

Case: SO
VISHAY (VIS) SMD Power MOSFETs
Series: SI_Y-E3
Case: SO
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| SI4401BDY-E3 | 40 | 10,5 | 0,014 | 1,0 | 16 | 97 |
| SI4410BDY-E3 | 30 | 10 | 0,0135 | 1,0 | 10 | 40 |
| SI4431BDY-E3 | 30 | 7,5 | 0,030 | 1,0 | 10 | 70 |
| SI4435DDY-E3 | 30 | 11,4 | 0,024 | 1,0 | 10 | 45 |
| SI4451DY-E3 | 12 | 14 | 0,00825 | 0,4 | 55 | 315 |
| SI4463BDY-E3 | 20 | 13,7 | 0,011 | 0,6 | 35 | 115 |
| SI4532ADY-E3 | 30 | 4,9/3,9 | - | 1,0 | - | - |
| SI4559ADY-E3 | 60 | 5,3/3,9 | - | 1,0 | - | - |
| SI4812BDY-E3 | 30 | 9,5 | 0,016 | 1,0 | 15 | 20 |
| SI4840BDY-E3 | 40 | 19 | 0,009 | 1,0 | 10 | 30 |
| SI4850EY-E3 | 60 | 8,5 | 0,022 | 1,0 | 10 | 25 |
| SI4936BDY-E3 | 30 | 6,9 | 0,035 | 1,5 | 5 | 12 |
| SI4947ADY-E3 | 30 | 3,9 | 0,080 | 1,0 | 8 | 21 |
| SI4948BEY-E3 | 60 | 3,1 | 0,120 | 1,0 | 10 | 50 |
| SI4953ADY-E3 | 30 | 4,9 | 0,053 | 1,0 | 7 | 40 |
| SI4966DY-E3 | 20 | 7,1 | 0,025 | 0,6 | 40 | 90 |
| SI9407BDY-E3 | 60 | 4,7 | 0,120 | 1,0 | 10 | 35 |
| SI9410BDY-E3 | 30 | 8,1 | 0,024 | 1,0 | 10 | 30 |
| SI9433BDY-E3 | 20 | 6,2 | 0,040 | 0,6 | 40 | 65 |
| SI9435BDY-E3 | 30 | 5,7 | 0,042 | 1,0 | 14 | 42 |
| SI9926BDY-E3 | 20 | 8,2 | 0,020 | 0,6 | 35 | 31 |
| SI9934BDY-E3 | 12 | 6,4 | 0,035 | 0,6 | 19 | 80 |
| SI9936BDY-E3 | 30 | 6,0 | 0,035 | 1,0 | 10 | 25 |
| SI9945AEY-E3 | 60 | 3,7 | 0,080 | 1,0 | 9 | 21 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". Form of delivery: orders of less than 2500 pieces: 10 pieces on tape segment without leader tape and reel; orders of 2500 pieces: delivery on reel if requested. Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
| Vishay http://www.vishay.com |
|
Stregkode:
106949
Intern reference:
106949
Varekode:
SI4431BDY-E3
