N-Ch 100V 9,3A 5,2W 0,025R PowerPakSO8
Varenummer:
106-936
Varekode:
SI7456DP-E3
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
U8782
VISHAY (VIS) SMD Power MOSFETs
Series: SI_DP-E3

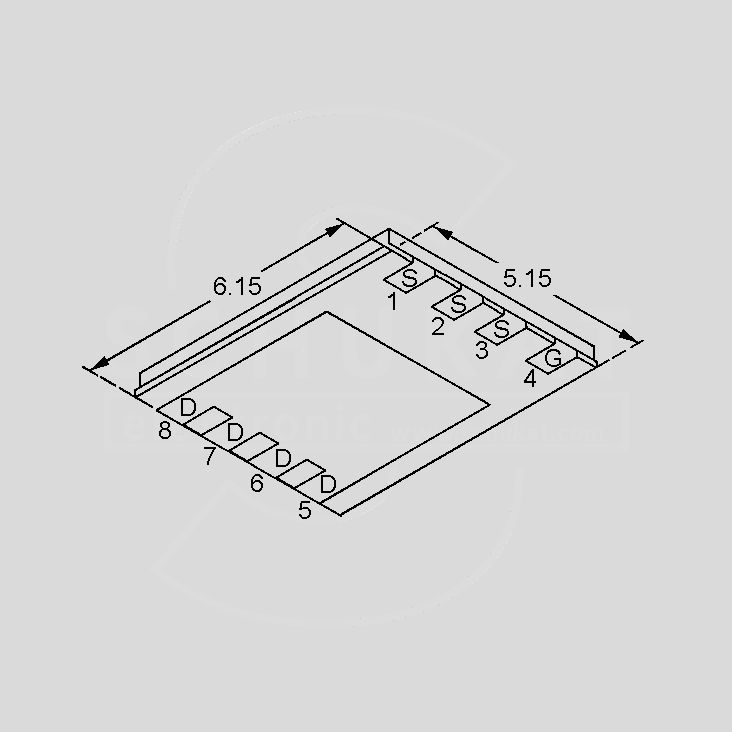

Case: PowerPakSO
VISHAY (VIS) SMD Power MOSFETs
Series: SI_DP-E3
Case: PowerPakSO
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| SI7336ADP-E3 | 30 | 30 | 0,003 | 1,0 | 24 | 90 |
| SI7431DP-E3 | 200 | 3,8 | 0,174 | 2,0 | 23 | 110 |
| SI7450DP-E3 | 200 | 5,3 | 0,080 | 2,0 | 14 | 32 |
| SI7456DP-E3 | 100 | 9,3 | 0,025 | 2,0 | 20 | 46 |
| SI7461DP-E3 | 60 | 14,4 | 0,0145 | 1,0 | 20 | 205 |
| SI7483ADP-E3 | 30 | 24 | 0,0057 | 1,0 | 22 | 210 |
| SI7485DP-E3 | 20 | 20 | 0,0073 | 0,4 | 80 | 360 |
| SI7489DP-E3 | 100 | 7,8 | 0,041 | 1,0 | 15 | 110 |
| SI7848BDP-E3 | 40 | 16 | 0,009 | 1,0 | 10 | 30 |
| SI7866ADP-E3 | 20 | 35 | 0,0024 | 0,8 | 18 | 49 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 10 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
| Vishay http://www.vishay.com |
|
Stregkode:
106936
Intern reference:
106936
Varekode:
SI7456DP-E3
