P-LogL 30V 3A 1,25W 0,098R SOT23
Varenummer:
106-767
Varekode:
IRLML5203PBF
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
U8721
INTERNATIONAL RECTIFIER (IR) SMD Power MOSFETs
Series: IRLML_

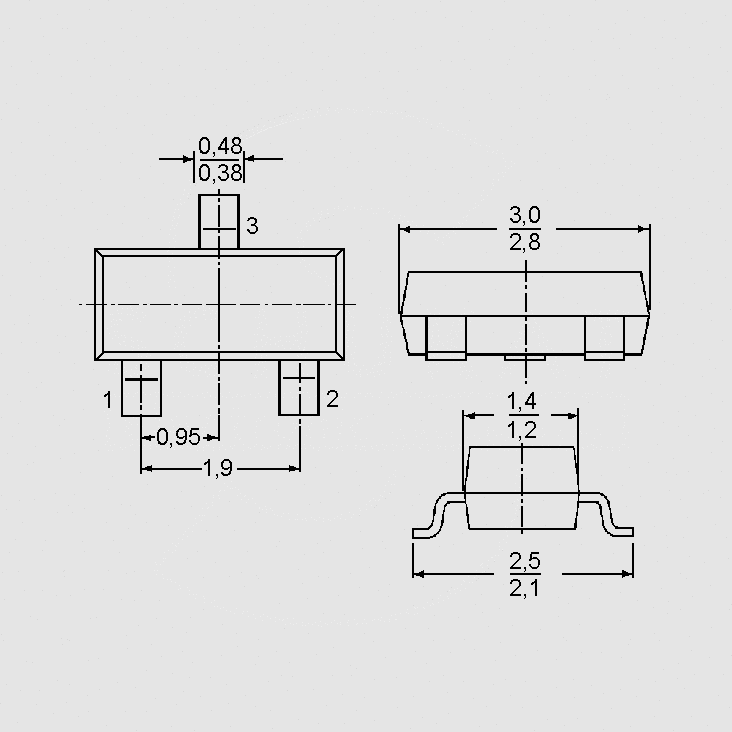

Case: SOT23
INTERNATIONAL RECTIFIER (IR) SMD Power MOSFETs
Series: IRLML_
Case: SOT23
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IRLML2402PBF | 20 | 1,2 | 0,250 | 0,7 | 2,5 | 9,7 |
| IRLML2502PBF | 20 | 4,2 | 0,600 | 0,6 | 7,5 | 54 |
| IRLML2803PBF | 30 | 1,2 | 0,250 | 1,0 | 3,9 | 9 |
| IRLML5103PBF | 30 | 0,76 | 0,600 | 1,0 | 10 | 23 |
| IRLML5203PBF | 30 | 3,0 | 0,098 | 1,0 | 12 | 88 |
| IRLML6302PBF | 20 | 0,78 | 0,600 | 0,7 | 13 | 22 |
| IRLML6401PBF | 12 | 4,3 | 0,050 | 0,4 | 11 | 250 |
| IRLML6402PBF | 20 | 3,7 | 0,065 | 0,4 | 350 | 588 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.irf.com |
|
Stregkode:
106767
Intern reference:
106767
Varekode:
IRLML5203PBF
