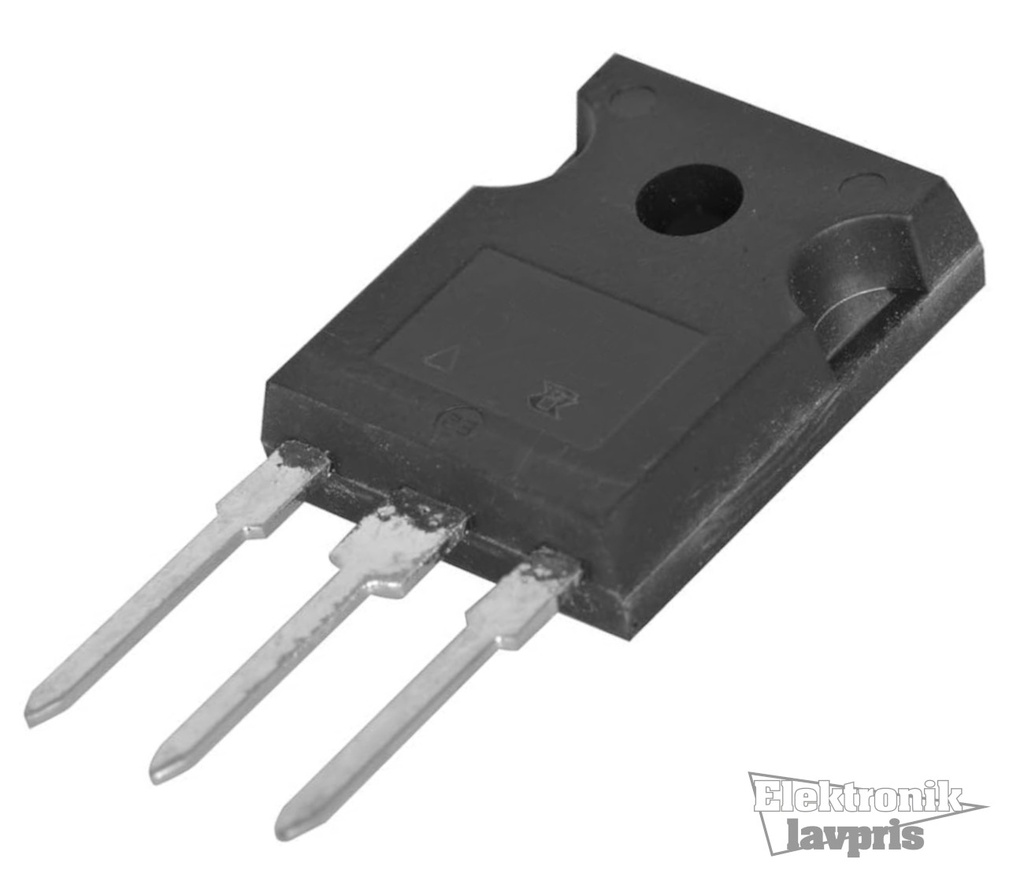

1200V 40A 190W TO247AD

Varenummer:

106-641

Varekode:

IXGH20N120B

Vægt:

0 g

Lagerstatus:

Ikke på lager

v/10

Kr. 67,98

v/25

Kr. 54,38

v/100

Kr. 46,22

Denne kombination eksistere ikke.

Køb

Technical Specifications


Part Nr.	U_CES	I_C25	I_Cpuls	P_tot	U_GE(th)	t_d(on)	t_d(off)
IX_H_	[V]	[A]	[A]	[W]	[V]	[ns]	[ns]
20N60B	600	40	80	150	2,5	15	150
20N120B	1200	40	80	190	2,5	25	150
25N100A	1000	50	100	200	2,5	100	500
28N60B	600	40	80	150	2,5	15	175
32N60B	600	60	120	200	2,5	25	100
32N60C	600	60	120	200	2,5	25	85
50N60B	600	75	200	300	2,5	50	150
60N60	600	75	200	300	2,5	50	300
15N120B	1200	30	60	150	3,0	30	148
35N120A	1200	70	140	300	4,0	80	400
35N140A	1400	70	140	300	4,5	40	150
45N120	1200	75	180	300	3,0	36	360
U_CES = Max. Collector-Emitter Breakdown Voltage, I_C25 = Max. Continuous Collector Current At T_C = 25°C, I_Cpuls = Max. Pulsed Collector Current, P_tot = Power Dissipation, U_GE(th) = Min. Gate Threshold Voltage, t_d(on) = Turn-On Delay Time, t_d(off) = Turn-Off Delay Time, T_C = Case Temperature

Additional Products

We will also deliver on request all other articles from IXYS, forward orders possible.

Manufacturer

http://www.ixys.com
