2630 TC Ecoloy 2,0% 1,0mm 1000g
Varenummer:
106-359
Varekode:
LZ2610TC-1000
Vægt:
1060 g
Lagerstatus:
Ikke på lager
Gruppe:
R5116

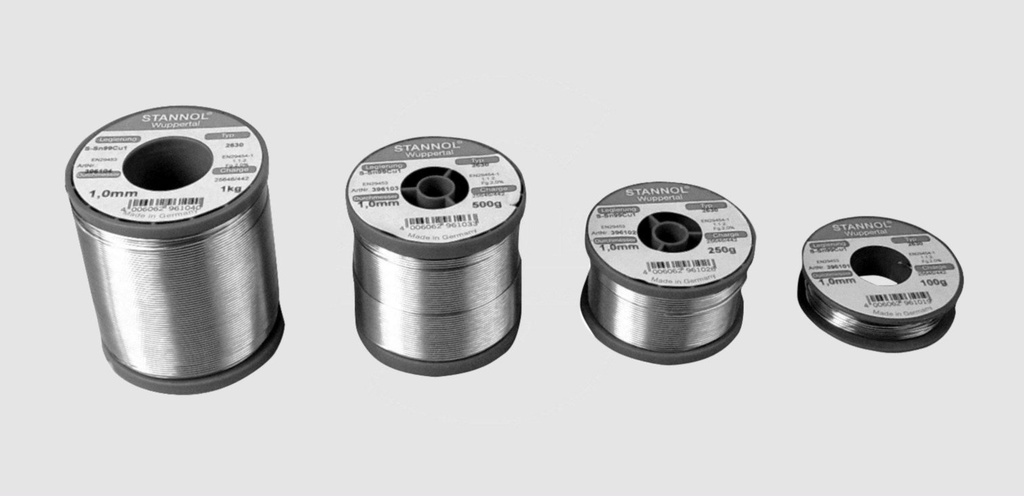

STANNOL Lead-free Soldering Wires Ecoloy
Halide-activated Flux 2,0%
Diameter: 1,0mm
Series: 2630 TC
STANNOL Lead-free Soldering Wires Ecoloy
Halide-activated Flux 2,0%
Diameter: 1,0mm
Series: 2630 TC
| Features |
| • Halide-activated natural resin fluxes • High activity, good spread and high residue reliability • High spread speed • Soldering points are glossy with few bright flux residues • Flux residues - can be left on the PCB • For soldering transformers and soldering copper cables with large cross sections • For soldering which requires a strong fluxing agent due to the extreme heat capacity of the component • Hand and robot soldering |
 |
| Technical Specifications |
| |
| Melting Point: | 217°C |
| Flux Type (IEC 61190-1-3 ROM1): | 1.1.2.B |
| Flux Content: | 2,0% |
| Corrosive Effects (DIN 8516): | None |
| Alloy (ISO 9453:2006): | Sn99Cu1/TC |
| Flux Core: | 1 Core |
| |
| Note |
| • You will find soldering stations and irons starting at product group T1121. • Soldering temperature and soldering time must accordingly be adjusted for lead-free solders. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.stannol.de |
|
Stregkode:
106359
Intern reference:
106359
Varekode:
LZ2610TC-1000
