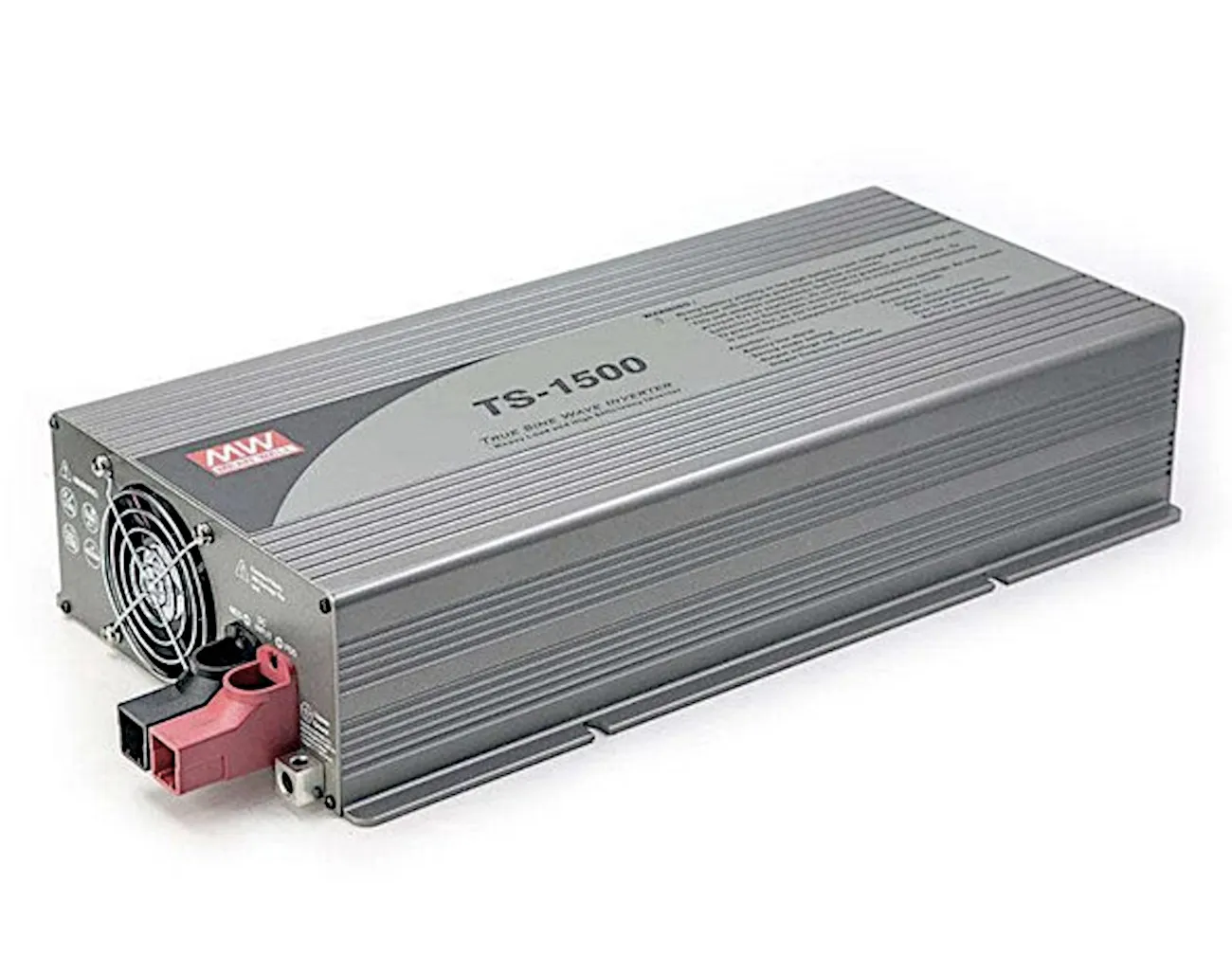

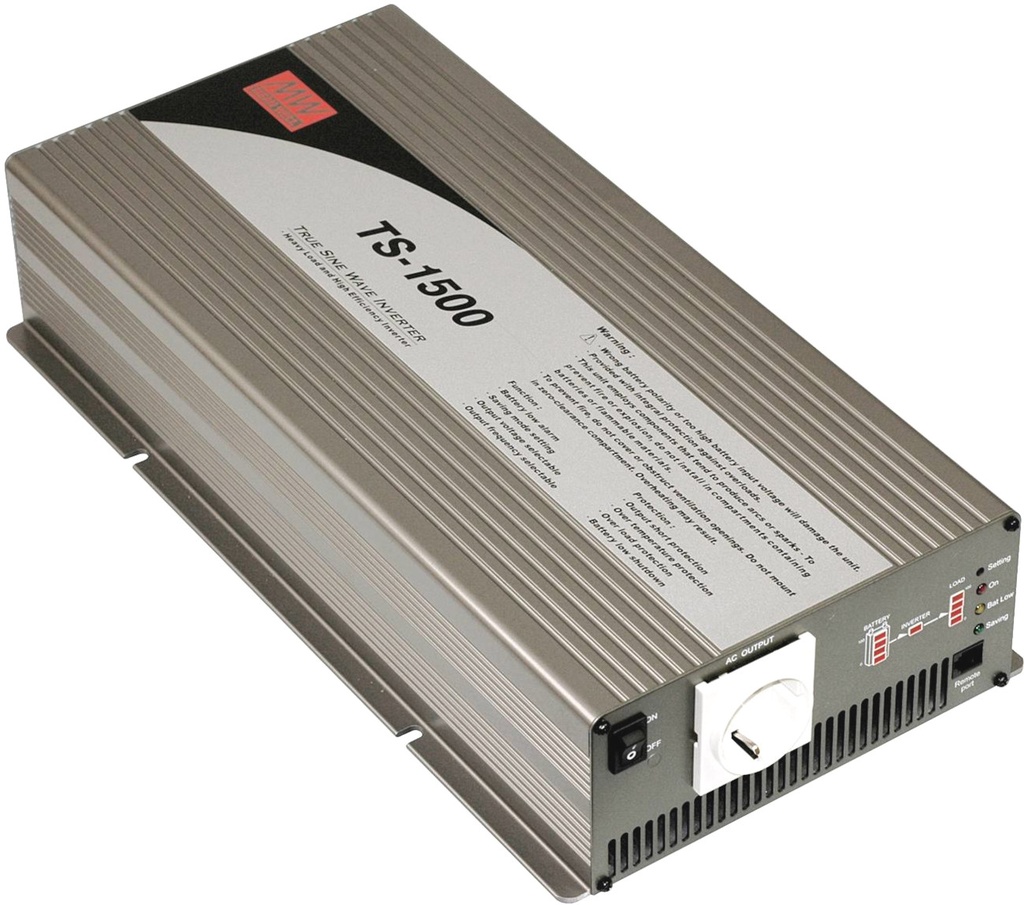

DC/AC-Conv 48V/230V 1500W REN SINUS
Varenummer:
106-118
Varekode:
TS-1500-248B
Vægt:
7300 g
Lagerstatus:
Ikke på lager
Gruppe: L9248
MEANWELL DC/AC Converters
Series: TS-1500
With True Sine Wave Output
Output: 1500W
| Features |
| • True sine wave output (THD 3%) • Power On/Off switch • Front panel indicator for operation status • Battery low alarm, Battery low shutdown • Protections: over voltage/over temperature/overload/output short/input reverse polarity • Built-in fan On/Off control function |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||
| Input Voltage: | See Table | Output Voltage, Selectable: | 200/220/230/240V AC | Output Voltage Tolerance: | ±3% | Output Frequency: | 50Hz ±0,1% | Output Rated Power: | 1500W | Peak Power: | 1725W/180s | 2250W/10s | 3000W/30 Cycles | Wave Form: | True Sine, THD 3% | Operating Temperature | 100% Load: | 0...+40°C | 50% Load: | 0...+60°C | Weight: | 6810g | |||||
|
|||||||||||||||||||||||||||
| Part Nr. | UE | IE | UBA | UBL | h | [V] | [A] | [V] | [V] | [%] | TS-1500-212B | 10,5...15 | 150 | 11,3 | 10,5 | 88 | TS-1500-224B | 21...30 | 75 | 22,5 | 21 | 90 | TS-1500-248B | 42...60 | 37,5 | 45 | 42 | 91 | |||||||
| UE = Input Voltage Range, IA = Input Current, UBA = Battery Low Alarm, UBL = Battery Shutdown, h = Efficiency | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
| Labelling |
    |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Articles in bold print in stock, other articles of 1 piece upwards available on request, delivery time approx. 14 weeks. |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
