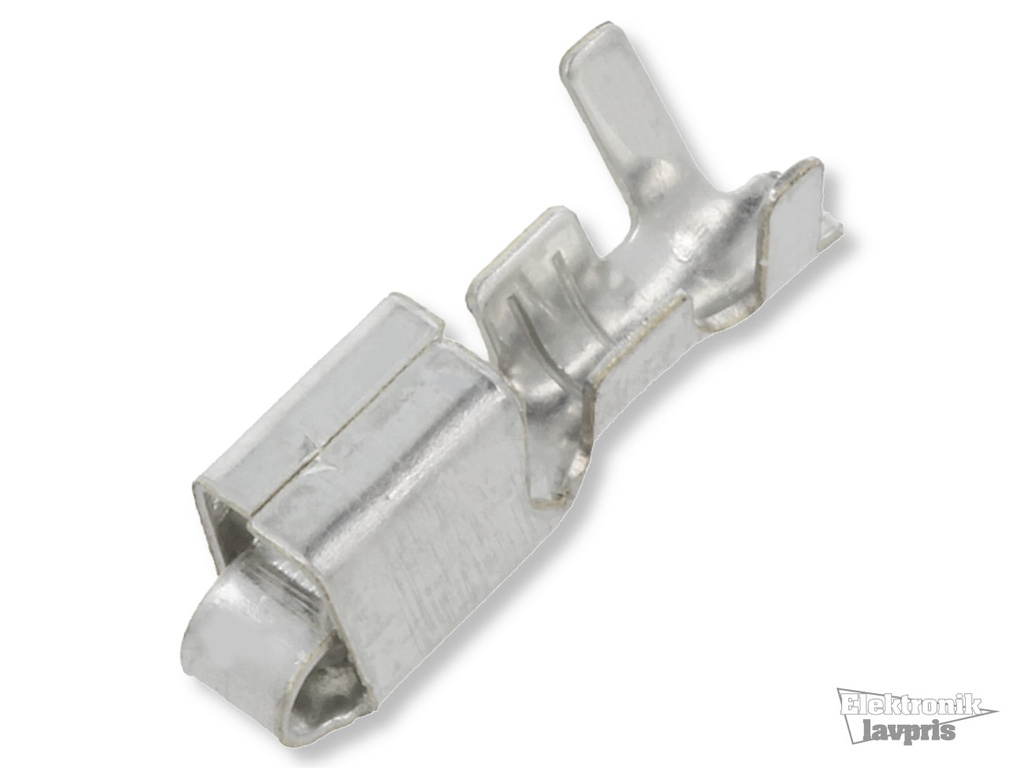

Crimp Contact for NSG396M_ 579 serie
Varenummer:
105-772
Varekode:
NSK396M-0
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: F1444
MPE GARRY Nylon Crimp Connectors
Series: NSG396M, NSL396M
Pitch: 3,96mm
| Features |
| • For easy manufacturing of multipolar connections • With polarising and locking |
 |
| Technical Specifications |
|
|
| Insulation Shell | |
| NSG396M_: | Nylon 66, UL94V-0 |
| 579-2-_: | Polyamid 66, UL94V-0 |
| Rated Voltage: | 7,0A |
| Rated Current: | 250VRMS/V DC |
| Dielectric Strength (1min.): | 1500VRMS |
| Temperature Range: | -25...+85°C |
|
|
| Dimensions |
|
|||||||
| Pole | 02 | 03 | 04 | 05 | 06 | 08 | 09 |
| A [mm] | 8,02 | 11,98 | 15,94 | 19,9 | 23,86 | 31,78 | 35,74 |
| B [mm] | 3,96 | 7,92 | 11,88 | 15,84 | 19,8 | 27,72 | 31,68 |
|
|||||||
| NSK396M-0, 707-2-TX-XR |
| Crimp Contacts |
|

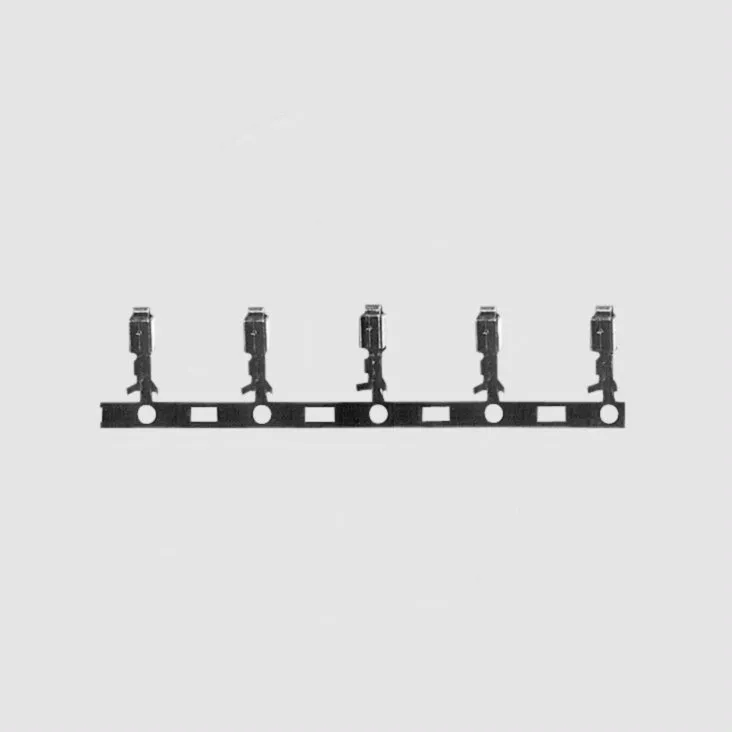

| Eigenschaften |
| • NSK396M-0: For use with connector housing NSG396M-_ • 707-2-TX-XR: For use with connector housing 579-2-_ • Suitable for cables AWG18, AWG20, AWG22 • Contact brass, tin-plated • Form of delivery: taped |
|
| NSL396M_, 580-_ |
| PCB Header |
|
| Features |
| • NSL396M-_G, 580-3_: straight version • NSL396M-_W, 580-4-_: angled version • With polarising and locking |
|
| Technical Specifications |
|
|
| Insulation Shell | |
| NSL396M_: | Nylon 66, UL94V-0 |
| 580-_: | Polyamid 66, UL94V-0 |
| Contacts: | Copper Alloy |
| Contact Surface: | Tinned |
| Rated Current: | 5,0A |
| Rated Voltage: | 250VRMS/V DC |
| Dielectric Strength (1min.): | 1500V AC |
| Temperature Range: | -25...+85°C |
|
|
| Dimensions |
| Pole | 02 | 03 | 04 | 05 | 06 | 08 |
| A [mm] | 7,92 | 11,88 | 15,84 | 19,8 | 23,76 | 31,68 |
| B [mm] | 3,96 | 7,92 | 11,88 | 15,84 | 19,8 | 27,72 |
|
||||||
| NSG396M_, 579-2-_ |
| Nylon Crimp Housing |
|
