SPS Class2 PFC 96W 48V/2A
Varenummer:
105-297
Varekode:
PLN-100-48
Vægt:
630 g
Lagerstatus:
Ikke på lager
Gruppe:
L4766
MEANWELL LED Switching Power Supplies
Series: PLN-100
Indoor and Outdoor Installations (IP64)
Output: 60 to 96W
MEANWELL LED Switching Power Supplies
Series: PLN-100
Indoor and Outdoor Installations (IP64)
Output: 60 to 96W
| Features |
| • Universal input • Overload protection, current limiting, auto recovery • Protections: short circuit/over load/over voltage • IP64, for indoor and outdoor installations • Suitable for LED lighting and moving sign applications • UL1310 Class 2 • Adjustable output voltage • Adjustable output current • EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13 |
 |
| Technical Specifications |
| |
| Input Voltage: | 90...295V AC (47...63Hz) |
| 127...417V DC | |
| Input Inrush Current, Max.: | 40A |
| Over Current Protection: | 95...102% |
| Withstand Voltage | |
| I/P-O/P: | 3750V DC |
| I/P-FG: | 1880V DC |
| O/P-FG: | 500V DC |

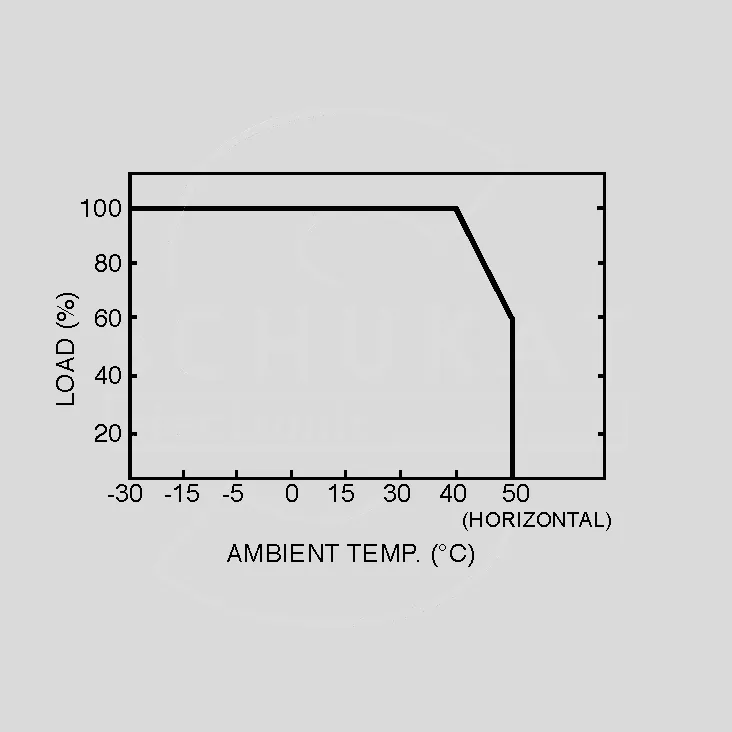

| Operating Temperature: | -30...+50°C |
| Weight: | 520g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
| |
| Part Nr. | UA | Uadj | Iadj | IA | PA | DUA | URN | h |
| PLN-_ | [V] | [V] | [A] | [A] | [W] | [%] | [mVp-p] | [%] |
| 100-12 | 12 | 10,2...12 | 3,75...5 | 5 | 60 | 3 | 150 | 84,5 |
| 100-15 | 15 | 12,8...15 | 3,75...5 | 5 | 75 | 3 | 150 | 86,5 |
| 100-20 | 20 | 17...20 | 3,6...4,8 | 4,8 | 96 | 3 | 150 | 90 |
| 100-24 | 24 | 20,4...24 | 3...4 | 4 | 96 | 3 | 150 | 90 |
| 100-27 | 27 | 23...27 | 2,6...3,55 | 3,55 | 95,85 | 3 | 150 | 90 |
| 100-36 | 36 | 30,6...36 | 2...2,65 | 2,65 | 95,4 | 2 | 150 | 90 |
| 100-48 | 48 | 40,8...48 | 1,5...2 | 2 | 96 | 2 | 200 | 89 |
| UA = Output Voltage, Uadj = Output Voltage Adjustment, Iadj = Output Current Adjustment, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Typ. Efficiency | ||||||||
| ||||||||
| Note |
| Suitable for indoor use and outdoor use without direct sunlight exposure. You will find suitable High Power LED Modules starting at product group W1982. |
|
| Labelling |
  (only 48V), (except 48V),  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
Stregkode:
105297
Intern reference:
105297
Varekode:
PLN-100-48
