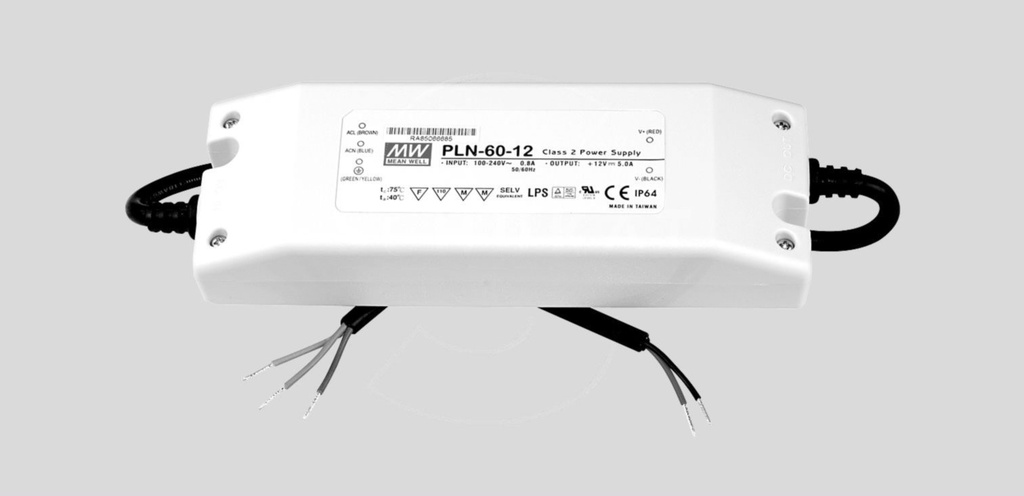

SPS Class2 PFC 60W 12V/5A
Varenummer:
105-284
Varekode:
PLN-60-12
Vægt:
540 g
Lagerstatus:
Ikke på lager
Gruppe:
L4765
MEANWELL LED Switching Power Supplies
Series: PLN-60
Indoor and Outdoor Installations (IP64)
Output: 60 to 62W
MEANWELL LED Switching Power Supplies
Series: PLN-60
Indoor and Outdoor Installations (IP64)
Output: 60 to 62W
| Features |
| • Universal input • Overload protection, current limiting, auto recovery • Protections: short circuit/over load/over voltage • IP64, for indoor and outdoor installations • Suitable for LED lighting and moving sign applications • UL1310 Class 2 • Fixed output voltage • EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13 |
 |
| Technical Specifications |
| |
| Input Voltage: | 90...264V AC (47...63Hz) |
| 127...370V DC | |
| Input Inrush Current, Max.: | 40A |
| Over Load Protection, max.: | 130% |
| PLN-60-12: | 95...110% |
| Withstand Voltage (I/P-O/P): | 4250V DC |

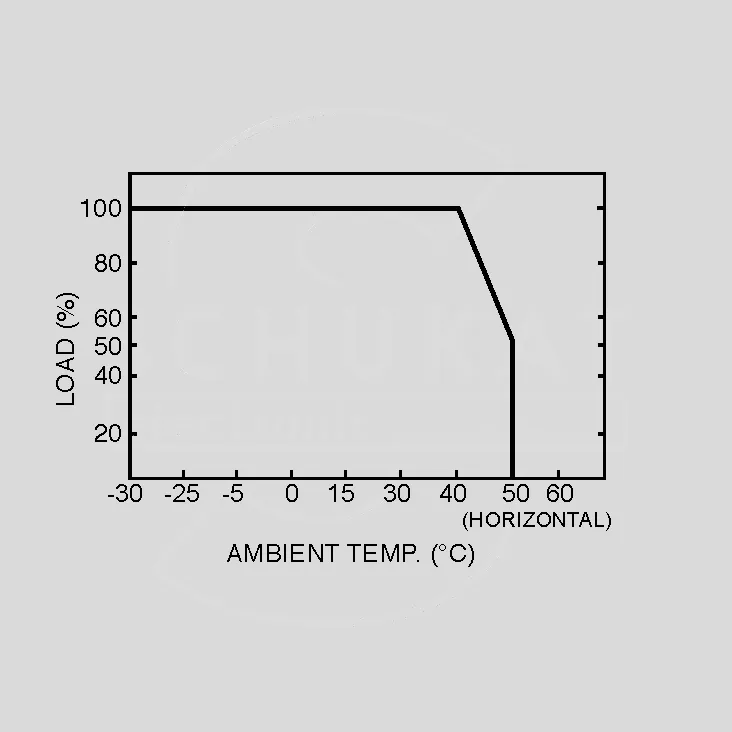

| Operating Temperature: | -30...+50°C |
| Weight: | 500g |
| I/P = Input, O/P = Output | |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [Vp-p] | [%] | |
| PLN-60-12 | 12 | 0...5 | 60 | 10 | 2 | 83 |
| PLN-60-15 | 15 | 0...4 | 60 | 10 | 2,4 | 84,5 |
| PLN-60-20 | 20 | 0...3 | 60 | 10 | 1,8 | 86,5 |
| PLN-60-24 | 24 | 0...2,5 | 60 | 10 | 2,7 | 86,5 |
| PLN-60-27 | 27 | 0...2,3 | 62,1 | 10 | 2,7 | 87 |
| PLN-60-36 | 36 | 0...1,7 | 61 | 10 | 3,6 | 87 |
| PLN-60-48 | 48 | 0...1,3 | 62,5 | 10 | 4,6 | 88 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Typ. Efficiency | ||||||
| ||||||
| Note |
| Suitable for indoor use and outdoor use without direct sunlight exposure. You will find suitable High Power LED Modules starting at product group W1982. |
|
| Labelling |
  (only 48V), (except 48V),  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
Stregkode:
105284
Intern reference:
105284
Varekode:
PLN-60-12
