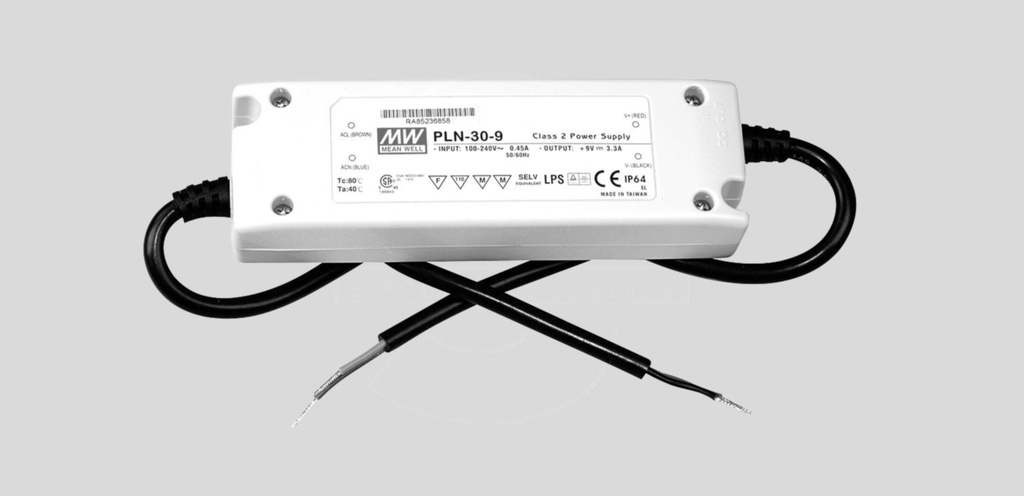

SPS Class2 PFC 30W 48V/0,63A
Varenummer:
105-283
Varekode:
PLN-30-48
Vægt:
240 g
Lagerstatus:
Ikke på lager
Gruppe:
L4763
MEANWELL LED Switching Power Supplies
Series: PLN-30
Indoor and Outdoor Installations (IP64)
Output: 30W
MEANWELL LED Switching Power Supplies
Series: PLN-30
Indoor and Outdoor Installations (IP64)
Output: 30W
| Features |
| • Universal input • Overload protection, current limiting, auto recovery • Protections: short circuit/over load/over voltage • IP64, for indoor and outdoor installations • Suitable for LED lighting and moving sign applications • Adjustable output voltage • Adjustable output current • EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13 |
 |
| Technical Specifications |
| |
| Input Voltage: | 90...295V AC (47...63Hz) |
| 127...417V DC | |
| Input Inrush Current, Max.: | 40A |
| Output Current Adjustment: | -25...+3% |
| Output Voltage Adjustment: | -5...+10% |
| Over Current Protection: | 100...110% |
| Withstand Voltage (I/P-O/P): | 3000V AC |

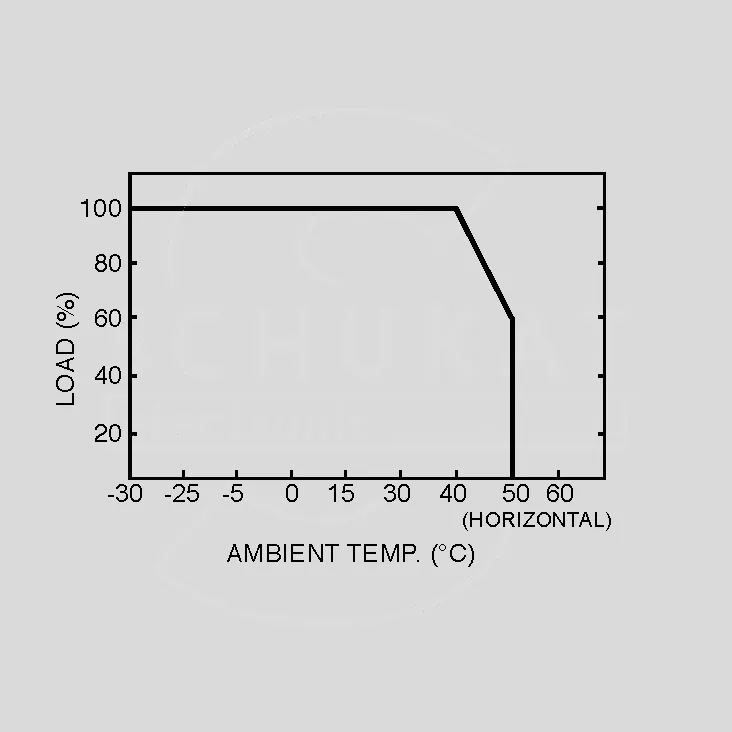

| Operating Temperature: | -30...+50°C |
| Weight: | 220g |
| I/P = Input, O/P = Output | |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [Vp-p] | [%] | |
| PLN-30-9 | 9 | 0...3,3 | 29,7 | 10 | 2,6 | 80 |
| PLN-30-12 | 12 | 0...2,5 | 30 | 10 | 2 | 82,5 |
| PLN-30-15 | 15 | 0...2 | 30 | 10 | 2,6 | 83,5 |
| PLN-30-20 | 20 | 0...1,5 | 30 | 10 | 2,6 | 84 |
| PLN-30-24 | 24 | 0...1,25 | 30 | 10 | 2,6 | 84 |
| PLN-30-27 | 27 | 0...1,12 | 30,24 | 10 | 2,3 | 84,5 |
| PLN-30-36 | 36 | 0...0,84 | 30,24 | 10 | 4,5 | 85 |
| PLN-30-48 | 48 | 0...0,63 | 30,24 | 10 | 3,7 | 85,5 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Typ. Efficiency | ||||||
| ||||||
| Note |
| Suitable for indoor use and outdoor use without direct sunlight exposure. You will find suitable High Power LED Modules starting at product group W1982. |
|
| Labelling |
  (except 48V),  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
Stregkode:
105283
Intern reference:
105283
Varekode:
PLN-30-48
