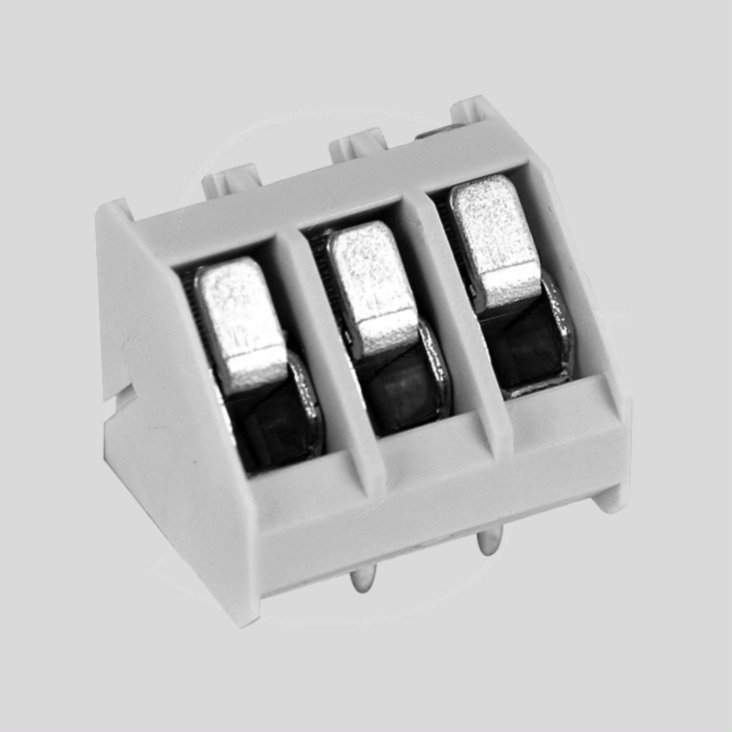

Terminal Block 160V 3-Pole Grey
Varenummer:
104-427
Varekode:
COB5-3
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
F9373
STELVIO KONTEK Terminal Blocks
Series: COB5
Screw-cage Clamp Principle
Conductor: 45°
Pitch: 5mm
STELVIO KONTEK Terminal Blocks
Series: COB5
Screw-cage Clamp Principle
Conductor: 45°
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 160V |
| Rated Current (T60): | 24A |
| Rated Cross Section Single Stranded Wire: | 0,2...1,5mm2 |
| Rated Cross Section Fine Stranded Wire: | 0,2...1mm2 |
| Stripped Length: | 6mm |
| Insulating Material: | PA |
| Temperature Range: | -30°C ...+120°C |
| Flammability Class: | UL94V-0 |
| Colour: | Grey |
| |
| Dimensions |
| Part Nr. | L | P | |
| [mm] | [mm] | ||
| COB5-2 | 10 | 5 | |
| COB5-3 | 15 | 5 | |
| |||
| Approvals |
 EN 60998,  UL1059,  UL1059, C22.2 no. 158 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.stelvio-kontek.com |
|
Stregkode:
104427
Intern reference:
104427
Varekode:
COB5-3
