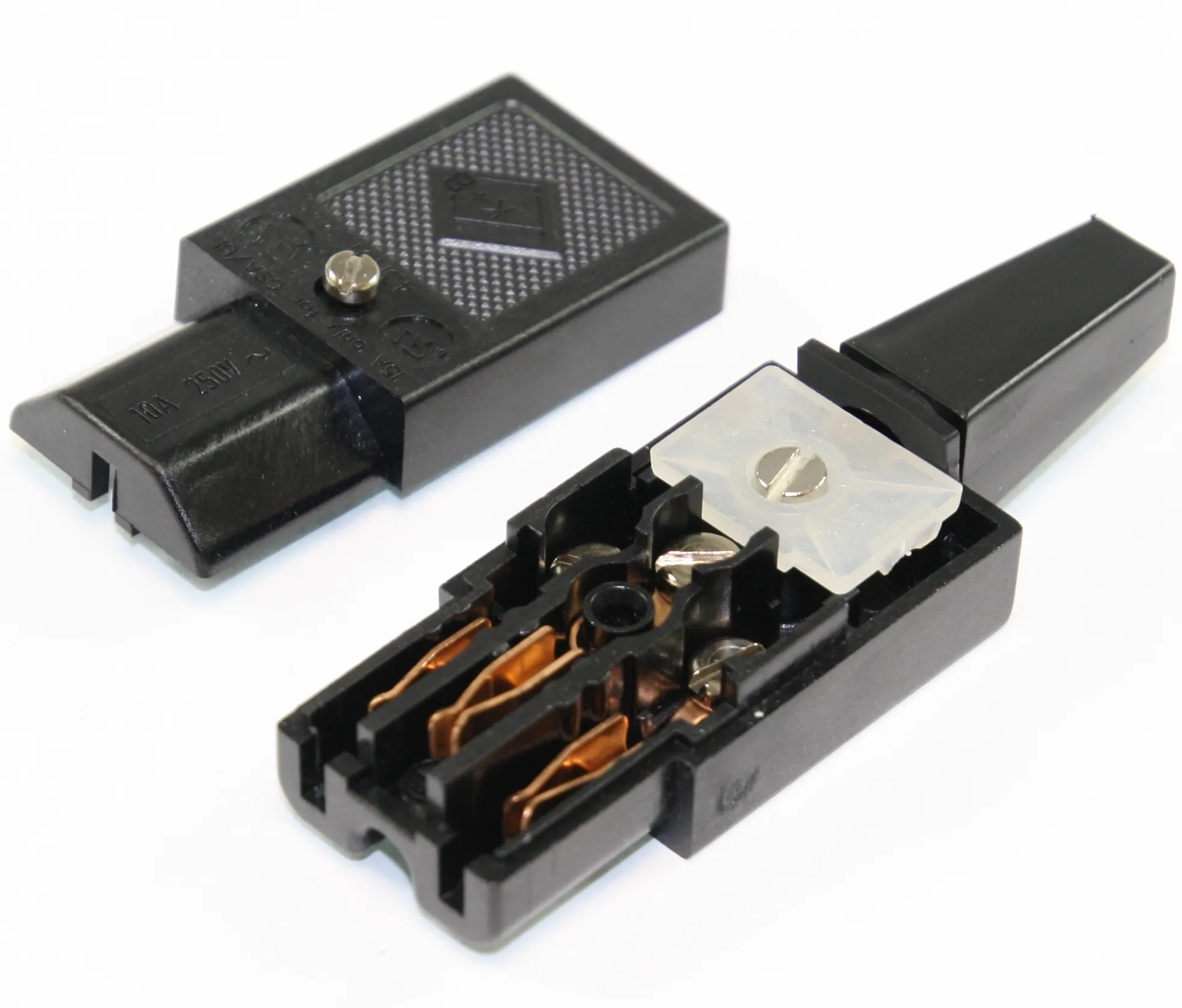

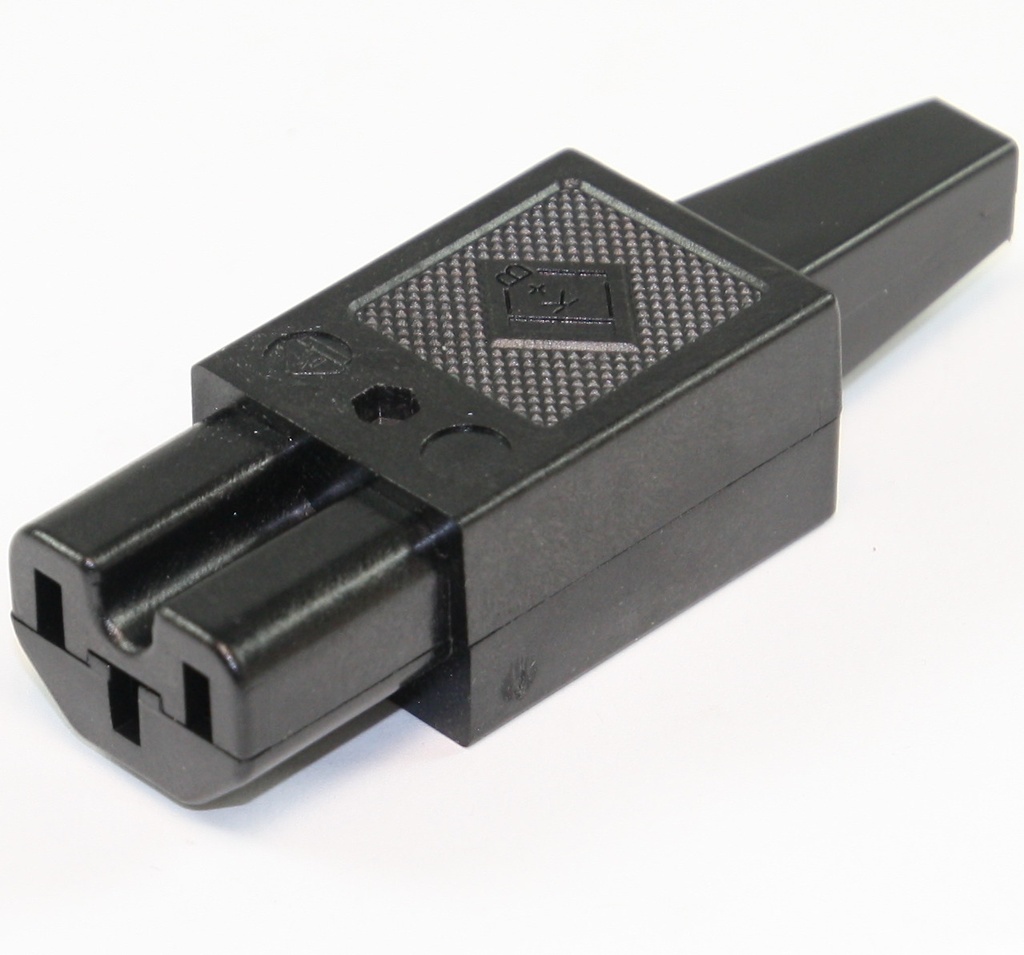

IEC Power Connector C15, Straight
Varenummer:
104-382
Varekode:
WGS3G
Vægt:
30 g
Lagerstatus:
Lager: 10 stk.
Gruppe:
F5611
K+B, KAISER IEC Female Power Connectors
Series: WGS3, WGS7
For Cable Assembly
Pin Temperature: 120°C
F5611
K+B, KAISER IEC Female Power Connectors
Series: WGS3, WGS7
For Cable Assembly
Pin Temperature: 120°C
| Technical Specifications |
 | |
| Nr. of Poles: | 2+PE |
| Continuous Current: | 10A (UL, CSA: 15 A) |
| Pin Temperature: | 120°C |
| Rated Voltage: | 250V AC |
| |
| WGS3G |
|
| Features |
| • Line socket straight type • Central cable inlet |
|
| Norms |
| IEC 320, Spec. sheet C15 |
|
| Approvals |
   |
|
| WGS3 |
|
| Features |
| • Line socket angled type • Left cable inlet |
|
| Norms |
| IEC 320, Spec. sheet C15 |
|
| Approvals |
| |
|
| WGS793W |
|
| Features |
| • Line socket angled type • Central cable inlet |
|
| Norms |
| EN 60320 / IEC 320, Spec. sheet C15A |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
  |
| http://www.kb-connector.de http://www.martin-kaiser.de |
|
Stregkode:
104382
Intern reference:
104382
Varekode:
WGS3G
