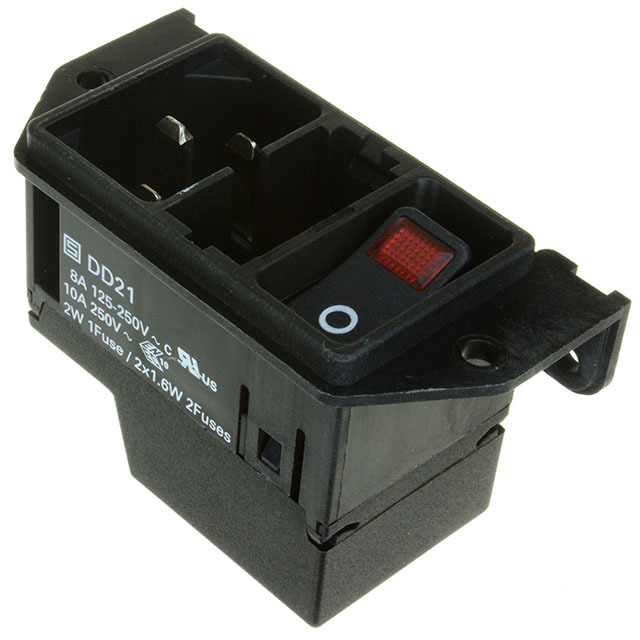

IEC C14 Plug Switch Fuse med RØD lys i switch
Varenummer:
104-374
Varekode:
DD21.0123.1111
Vægt:
50 g
Lagerstatus:
Ikke på lager
Gruppe:
F5565
SCHURTER IEC Male Power Insert Connectors
Series: DD21
With Rocker Switch and Fuseholder
Pin Temperature: 70°C
F5565
SCHURTER IEC Male Power Insert Connectors
Series: DD21
With Rocker Switch and Fuseholder
Pin Temperature: 70°C
| Features |
| • Combination consists of: - Appliance plug - 2-pole rocker switch - 2-pole fuse holder for two fuses (5x20mm), Fuse drawer FT4301-1401 must be ordered separately (see note) • Connection by 4,8mm flat cable plug • PCB solder terminals and additionally quick-connect terminal 4,8x0,8mm for ground •Screw-on mounting from real-side |
 |
| Technical Specifications |
| |
| Nr. of Poles: | 2 + PE |
| Continuous Current: | 10A |
| Fuse Holder: | 6,3A |
| Rated Voltage: | 250V AC |
| Pin Temperature: | 70°C |
| Temperate Range: | -25°C to +85°C |
| |
| Selection Table |
| Part Nr. | Rocker | Imprint | Assembly | Front Plate |
| DD21-_ | Thickness | |||
| [mm] | ||||
| 0121-1111 | Black1) | I/O | Screw-on | 3 |
| 0123-1111 | Red2) | I/O | Screw-on | 3 |
| 0124-1111 | Green2) | I/O | Screw-on | 3 |
| 1) non-illuminated; 2) illuminated | ||||
| ||||
| Note |
| • Fuse drawer FT4301-1401 must be ordered seperately, see product group F5563. |
|
| Approvals |
  10 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.schurter.de |
|
Stregkode:
104374
Intern reference:
104374
Varekode:
DD21.0123.1111
