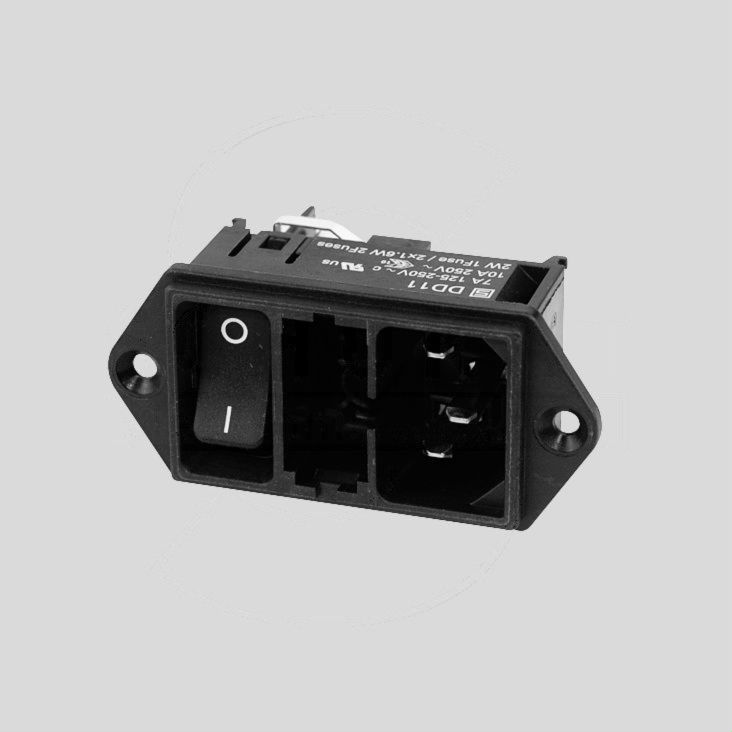

IEC C14 Power Connector Switch, 2xFuse
Varenummer:
104-369
Varekode:
DD11.0121.1111
Vægt:
40 g
Lagerstatus:
Ikke på lager
Gruppe:
F5563
SCHURTER IEC Male Power Insert Connectors
Series: DD11
With Rocker Switch and Fuseholder
Pin Temperature: 70°C
F5563
SCHURTER IEC Male Power Insert Connectors
Series: DD11
With Rocker Switch and Fuseholder
Pin Temperature: 70°C
| DD11_ |
 |
| Features |
| • Combination consists of: - Appliance plug - 2-pole rocker switch - Fuse holder for one fuse (5x20mm) with voltage selector insert (Fuse drawer FT4301-1401 must be ordered separately.) • Connection by 4,8mm flat cable plug • Screw assembly |
|
| Technical Specifications |
| |
| Nr. of Poles: | 2+PE |
| Continuous Current: | 10A |
| Fuse Holder: | 6,3A |
| Pin Temperature: | 70°C |
| Rated Voltage: | 250V AC |
| |
| Selection Table |
| Part Nr. | Rocker | Imprint | Assembly | Front Plate |
| DD11-_ | Thickness | |||
| [mm] | ||||
| 0121-1110 | Black1) | I/O | Screw | 1,5 |
| 0123-1110 | Red2) | I/O | Screw | 1,5 |
| 0124-1110 | Green2) | I/O | Screw | 1,5 |
| 1) non-illuminated, 2) illuminated | ||||
| ||||
| FT4301-1401 |
| Fuse Drawer for DD11_, DD21_ and KM_ |
|
| Features |
| • Fuse drawer for 2 fuses 5x20mm • Suitable for DD11_, DD12_ and KM_ (see note) |
|
| Note |
| • You will find suitable fine fuse links 5x20mm at product group • You will find suitable RFI suppression filters in product group D3281. • You will find KM_ series in product group F5569. |
|
| Norms |
| EN60320-1, UL498, CSA C22.2 no. 42 |
|
| Approvals |
  10 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.schurter.de |
|
