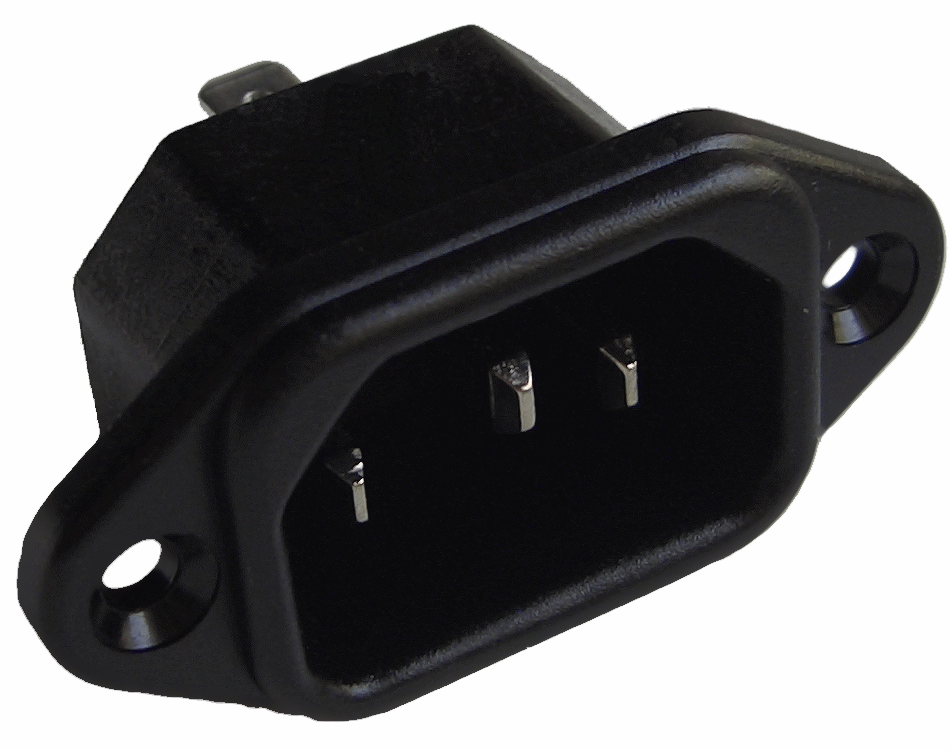

IEC C14 Power Connector Spacing=36mm 4,8mm

Varenummer:
104-352
Varekode:
GSD336-4,8
Vægt:
10 g
Lagerstatus:
Lager: 45 stk.

kr 12,75 12.75 DKK kr 12,75 Inklusiv moms

kr 12,75 Inklusiv moms

Anmod os om en pris

v/10
Kr. 7,50
v/100
Kr. 6,25
v/1000
Kr. 5,50

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/60108/image_1920?unique=91e2051 https://elektroniklavpris.odoo.com/web/image/product.template/60108/image_1920?unique=91e2051



Technical Specifications

Nr. of Poles:
 2+PE
Continuous Current:
 10A (UL, CSA: 15 A)
Pin Temperature:
 65°C
Rated Voltage:
 250V AC
GSD336-_

Features

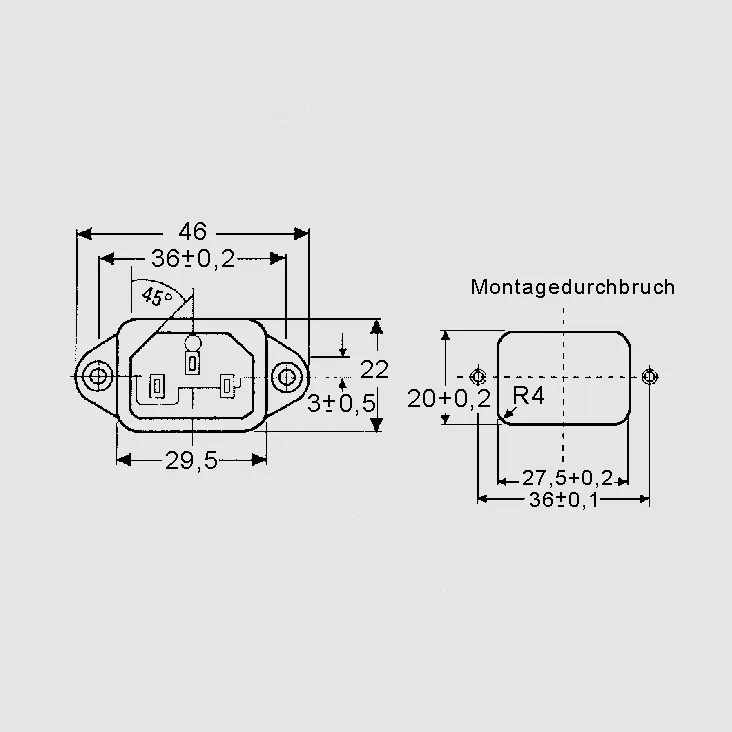

• CEE mains appliance plug, longitudinal flange, distance between fixing holes 36mm
• Screw terminal
GSD336-4,8: 4,8mm
GSD336-6,3: 6,3mm

Norms
EN60320/IEC320, Normblatt C14

Approvals

GSD781

Features

• CEE mains appliance plug, longitudinal flange, distance between fixing holes 40mm
• Screw terminal 4,8mm

Norms
EN60320/IEC320

Approvals

GSD340-6,3

Features

• CEE mains appliance plug, longitudinal flange, distance between fixing holes 40mm
• Screw terminal 6,3mm

Norms
EN60320/IEC320, Normblatt C14

Approvals

GSD3SI

Features

• CEE mains appliance plug, snap-in-assembly
• Screw terminal 6,3mm
• For panel thickness 1,0...3,2mm variable

Approvals

GSD1001

Features

• CEE mains appliance plug, longitudinal flange, distance between fixing holes 40mm
• PCB assembly, pitch 9,0mm

Norms
EN60320/IEC320, Normblatt C14

Approvals


Manufacturer
K+B, Kaiser,
http://www.kb-connector.de
http://www.martin-kaiser.de
http://www.otto-heil.de
