PLCC Socket 20Pole Sn PKU=32
Varenummer:
104-288
Varekode:
PLCC20-TH
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
F3612
MPE GARRY PLCC Sockets
Series: 081
Pitch: 1,27mm
MPE GARRY PLCC Sockets
Series: 081
Pitch: 1,27mm
| Features |
| • PLCC sockets, solder tail, with precision stamped contacts (acc. JEDEC MO-047 / MO-052) • high-temperature-resistant |
 |
| Technical Specifications |
| |
| Insulation Shell: | Thermoplast, Black (UL94V-0) |
| Contact Material: | CuSn (Phosphor Bronze) |
| Rated Current: | 1A |
| Rated Voltage: | 100VRMS |
| Withstand Voltage (1min.): | 600VRMS |
| Temperature Range: | -40...+85°C |
| Processing Temperature, Max.: | +260°C for 10 Seconds |
| |

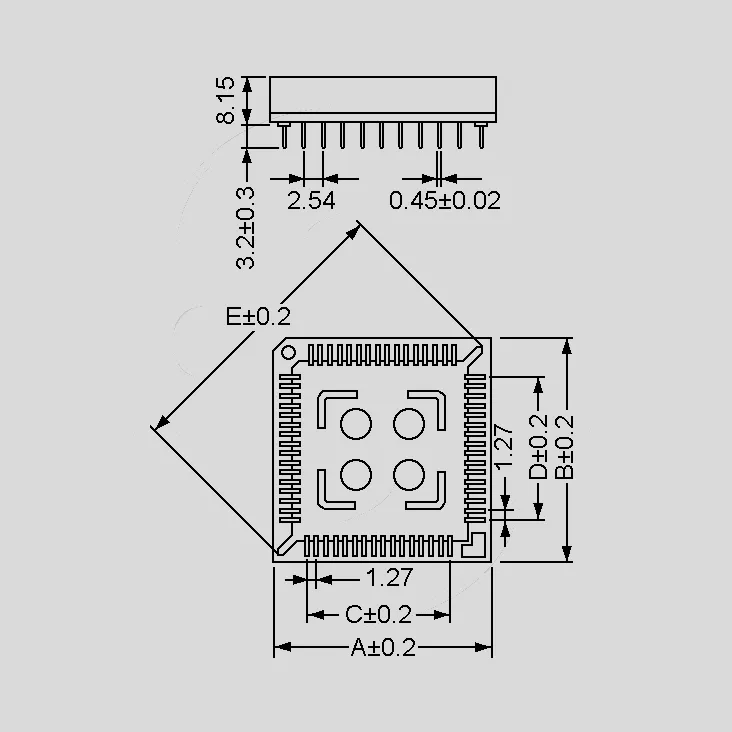

| Dimensions |
| PLCC_ | A | B | C | D | E |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| 20-TH | 15,56 | 15,56 | 5,08 | 5,08 | 18,20 |
| 28-TH | 18,10 | 18,10 | 7,62 | 7,62 | 21,70 |
| 32-TH | 18,10 | 20,64 | 7,62 | 10,16 | 23,65 |
| 44-TH | 23,18 | 23,18 | 12,70 | 12,70 | 28,80 |
| 52-TH | 25,72 | 25,72 | 15,24 | 15,24 | 32,50 |
| 68-TH | 30,80 | 30,80 | 20,32 | 20,32 | 40,00 |
| 84-TH | 35,88 | 35,88 | 25,40 | 25,40 | 47,15 |
| |||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = see part description |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
104288
Intern reference:
104288
Varekode:
PLCC20-TH
