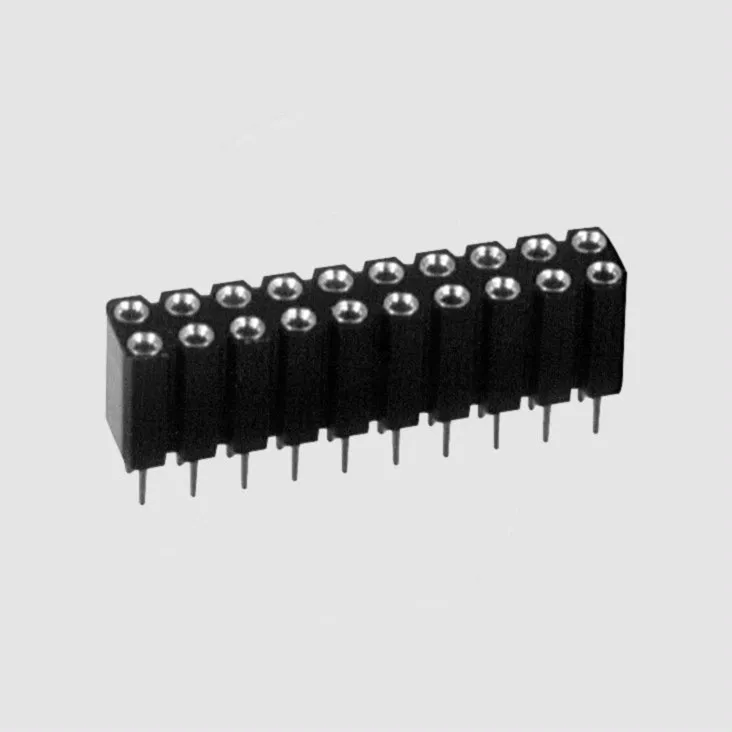

Prec.Female Header 2R Straight 40-Pole

Varenummer:
104-237
Varekode:
BL2X20PF
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 26,88
v/30
Kr. 22,40
v/100
Kr. 17,91
v/1000
Kr. 13,44

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/59993/image_1920?unique=84270ad https://elektroniklavpris.odoo.com/web/image/product.template/59993/image_1920?unique=84270ad
Features
• Selective gold-plated design
• With 6 beryllium copper fingerclips
• Suitable for square pins 0,635x0,635mm (1/40") or round pins with Ø 0,7...0,8mm
Technical Specifications
Insulation Shell:
 Glass-filled Polyamide, UL94V-0, Black
Contact Material
Solder Pin:
 Brass
Clip:
 Beryllium-Copper
Contact Surface:
 0,25μm Au (Selective Gold-plated.) Over 2-3μm Ni
Contact Resistance:
 �10mW
Rated Current:
 3A
Rated Voltage:
 100VRMS /150V DC
Insulation Resistance:
 >10000MW
Temperature Range:
 -55...+125°C
Solderability
IEC68-2-254:
 Ta=235°C, 5s
IEC68-2-220:
 Tb=260°C, 5s
Manufacturer

http://www.mpegarry.de
Kontakt os

Stregkode: 104237
Intern reference: 104237
Varekode: BL2X20PF
