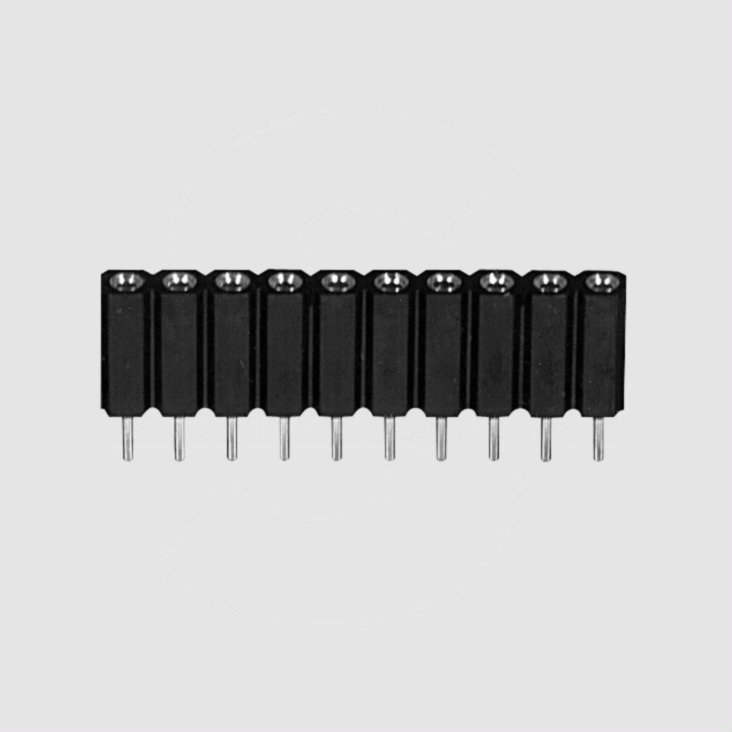

Prec.Female Header 1R Straight 10-Pole
Varenummer:
104-233
Varekode:
BL1X10PF
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
F2851
MPE GARRY Precision Female Headers
Series: BL10, BL20S
Single and Double Row, Straight
Height: 7,0mm
Pitch: 2,54mm
MPE GARRY Precision Female Headers
Series: BL10, BL20S
Single and Double Row, Straight
Height: 7,0mm
Pitch: 2,54mm
| Features |
| • Selective gold-plated design • With 6 beryllium copper fingerclips • Suitable for square pins 0,64x0,64mm or round pins with Ø 0,7...0,8mm • BL20S_: Star-shaped opening between the contacts for easy cutting |
 |
| Technical Specifications |
| |
| Insulation Shell: | High Temp. Thermoplast (UL94V-0), Black |
| Contact Material | |
| Solder Pin: | Cu-alloy |
| Clip: | BeCu |
| Contact Surface: | Au (Selective Gold-plated.) |
| Rated Current: | 3A |
| Rated Voltage: | 250VRMS/250V DC |
| Breakdown Voltage, Min.: | 1000VRMS |
| Temperature Range: | -55...+125°C |
| Solderability, Max.: | 260°C, 10s |
| |
| Terms of Delivery |
| Minimum order quantity 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
104233
Intern reference:
104233
Varekode:
BL1X10PF
