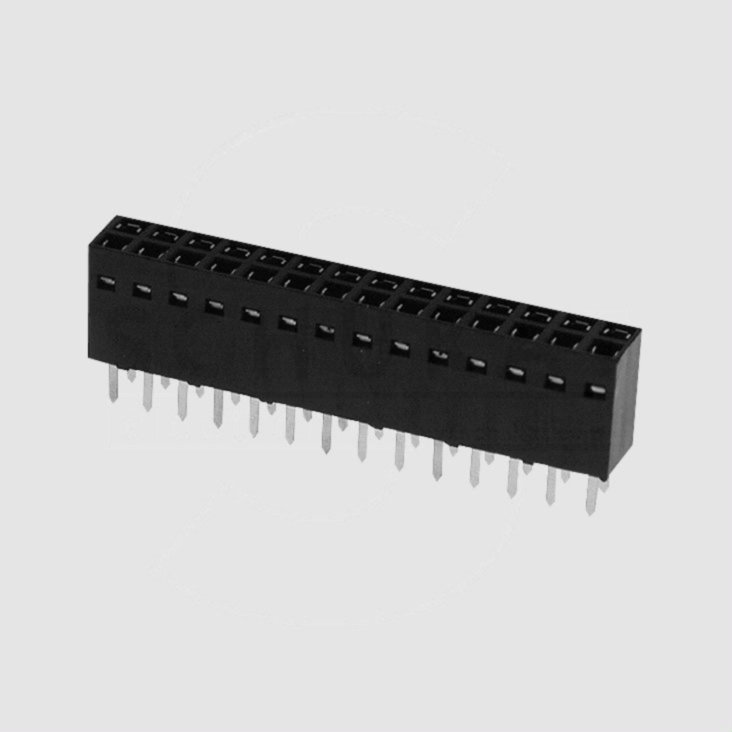

Female Header 2R Straight 2x10-Pole Au
Varenummer:
104-230
Varekode:
BL210TG
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
F2824
MPE GARRY Female Headers
Series: BL2
Double Row, Straight
Height: 8,5mm
Pitch: 2,54mm
MPE GARRY Female Headers
Series: BL2
Double Row, Straight
Height: 8,5mm
Pitch: 2,54mm
| Features |
| • Tin-plated and gold-plated design • Suitable for square pins 0,64x0,64mm |
 |
| Technical Specifications |
| |
| Insulation Shell: | Thermoplastic (UL94V-0) |
| Contact Material: | Phosphor-Bronze |
| Contact Shell | |
| BL2_Z: | Tinned |
| BL2_TG: | Flash Gold |
| Rated Current: | 3A |
| Rated Voltage: | 250VRMS/250V DC |
| Dielectric Strength (1Min.): | 500V AC |
| Temperature Range: | -40...+105°C |
| Short Term (Max. 10s): | 260°C |
| Solderability: | IEC 68-2-20 Tb |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
104230
Intern reference:
104230
Varekode:
BL210TG
