Box Header Straight 44-Pole
Varenummer:
104-188
Varekode:
MWSL44G
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
F2251
MPE GARRY Box Headers
Series: STL22
Straight
Pitch: 2,00mm
MPE GARRY Box Headers
Series: STL22
Straight
Pitch: 2,00mm
| Features |
| • For the IDC connectors MPF_G series (see note) • Gold-plated design |
 |
| Technical Specifications |
| |
| Insulation Shell: | Thermoplastic, UL94V-0 |
| Contact Material: | Copper alloy |
| Contact Surface: | Gold-plated |
| Rated Current: | 1,5A |
| Rated Voltage: | 150VRMS/150V DC |
| Dielectric Strength (1Min.): | 500V AC |
| Temperature Range: | -40...+105°C |
| Short Term (10s): | +260°C |
| |

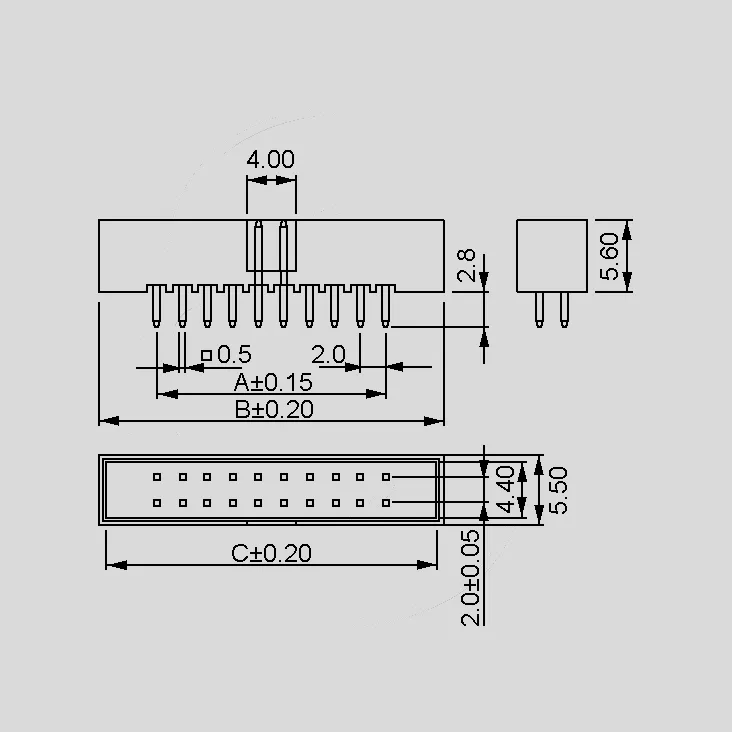

| Dimensions |
| Part Nr. | Nr. of Poles | A | B | C |
| [mm] | [mm] | [mm] | ||
| MWSL10G | 10 | 8,00 | 17,00 | 15,80 |
| MWSL20G | 20 | 18,00 | 27,00 | 25,80 |
| MWSL26G | 26 | 24,00 | 33,00 | 31,80 |
| MWSL40G | 40 | 38,00 | 47,00 | 45,80 |
| MWSL44G | 44 | 42,00 | 51,00 | 49,80 |
| ||||
| Note |
| • For suitable DC connectors, please see product group F2521. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
Stregkode:
104188
Intern reference:
104188
Varekode:
MWSL44G
