Spadestik 4,8x0,8mm Han PCB 10x13,3 Tin-plated
Varenummer:
104-006
Varekode:
LS1537Z
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: F1275
Flat Tabs
Series: LS15_
For Soldering or Screwing
Width: 4,8mm
Surface: Silver and Tin-plated
| Series LS |
| Tin-Plated Flat Tabs |
 |
| Features |
| • Flat tabs to screw on or solder onto a PCB • Made of brass, tin-plated • LS3826P-Z: Made of brass, nickel-plated, tin-plated |
|

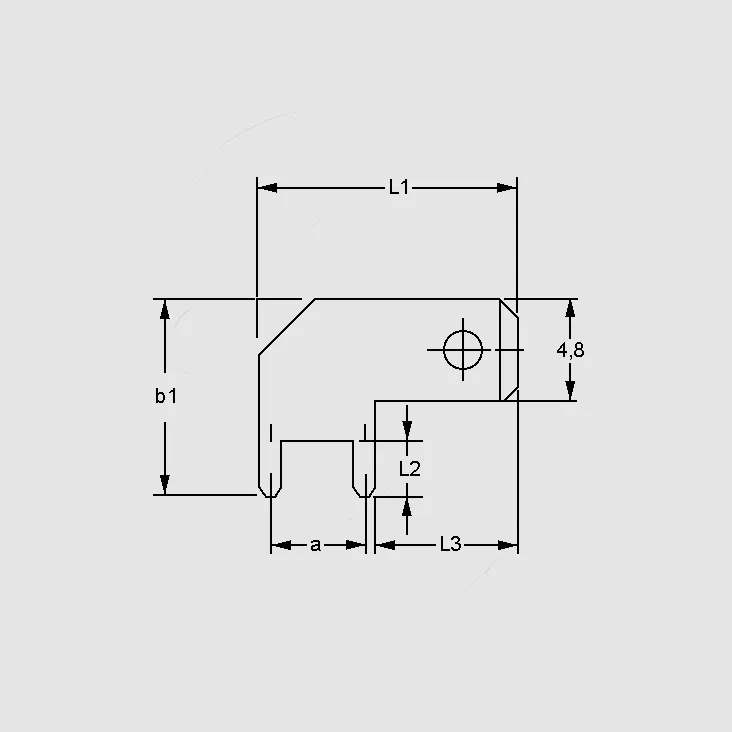

| Dimensions |
| Part Nr. | b1 | b2 | L1 | L2 | L3 | a | s |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| LS1560Z | 6,3 | 1,3 | 12,6 | 4,0 | 6,4 | 5,0 | 0,8 |
| LS1537Z | 10,0 | 1,2 | 13,3 | 3,0 | 7,1 | 5,0 | 0,8 |
| LS3826P-Z | 6,5 | 1,3 | 12,8 | 4,0 | 7,0 | 5,2 | 0,8 |
| s = Material Strength | |||||||
Stregkode:
104006
Intern reference:
104006
Varekode:
LS1537Z
