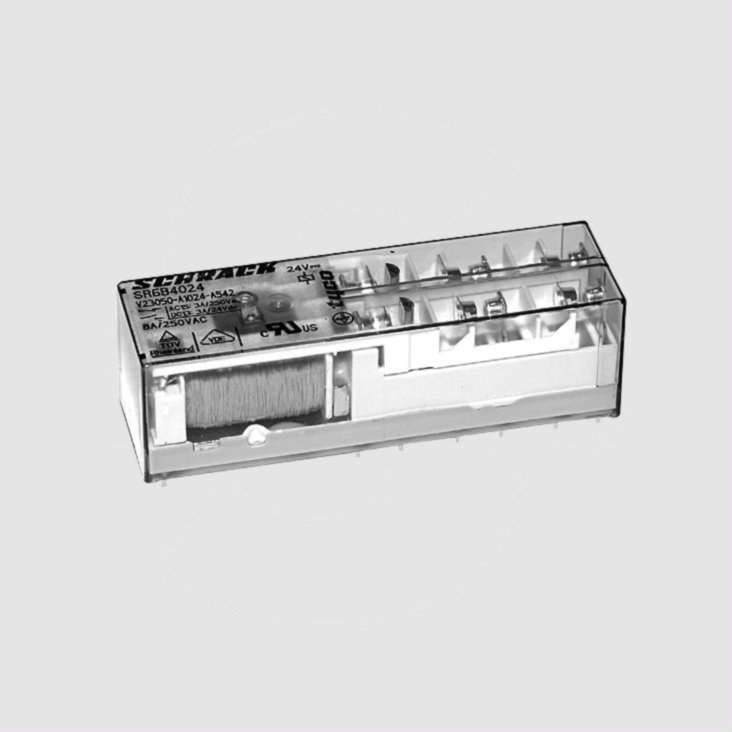

Safety Relay 24V 8A 4xNO+2xNC
Varenummer:
103-967
Varekode:
V23050A1024A542
Vægt:
50 g
Lagerstatus:
Ikke på lager
Gruppe:
E6815
TE Safety Relays
Series: V23050
Contact: 4xNO and 2xNC, 5xNO and 1xNC or 3xNO and 3xNC
Rated Current: 8A
Housing: 55x16,5x16,5mm
TE Safety Relays
Series: V23050
Contact: 4xNO and 2xNC, 5xNO and 1xNC or 3xNO and 3xNC
Rated Current: 8A
Housing: 55x16,5x16,5mm
| Features |
| • Relay with forcibly guided contacts according to EN50205 • 6-pole safety relay • Category of protection RTIII (wash tight) |
 |
| Application |
| Emergency shut-off, press control, safety modules, elevator and escalator control |
|
| Technical Specifications |
| |
| Contact | |

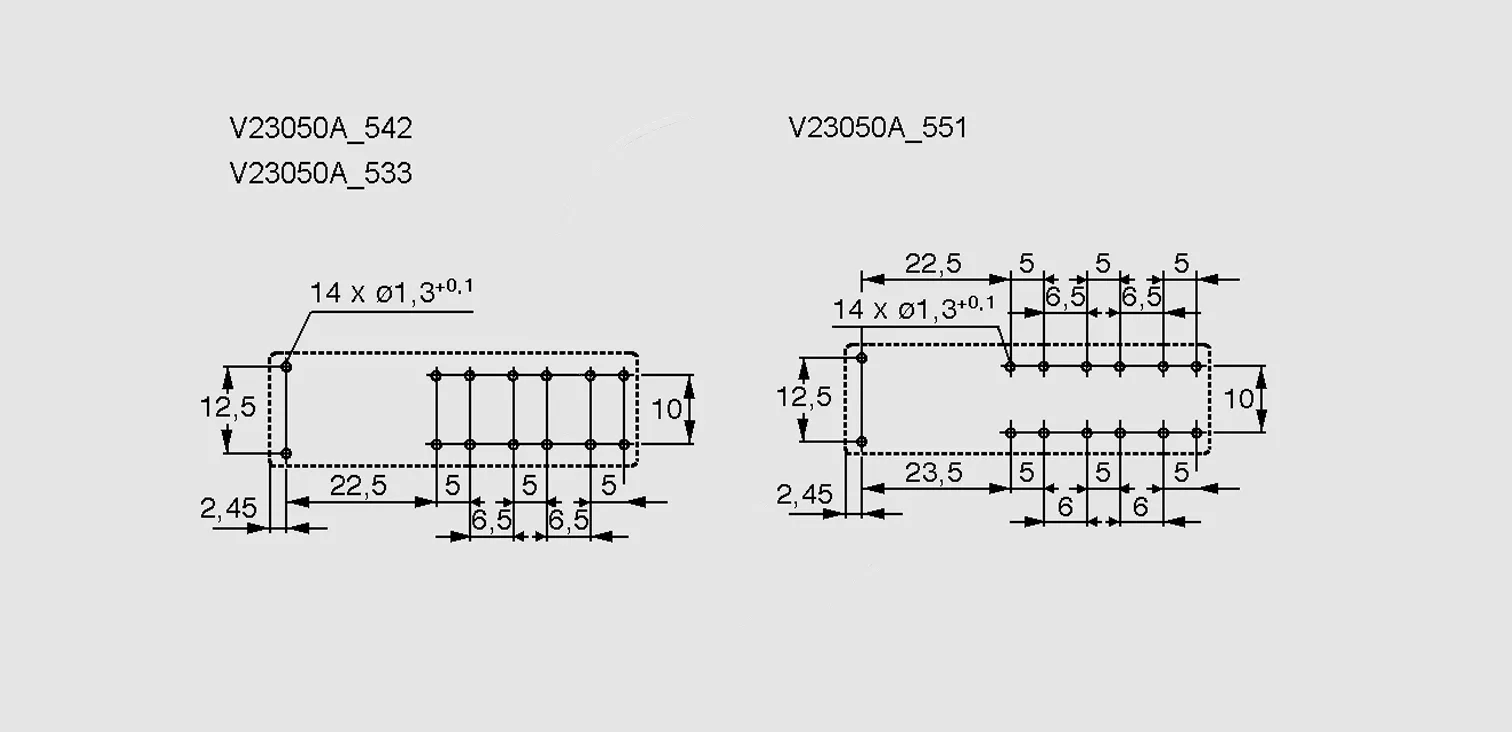

| V23050A1024A542: | 4xNO+2xNC |
| V23050A1024A551: | 5xNO+1xNC |
| V23050A1024A533: | 3xNO+3xNC |
| Contact Material: | AgSnO2 |
| Rated Current: | 8A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 2000VA |
| Creepage/Clearance: | 5,5/5,5mm |
| Testing Voltage | |
| Coil/Contact: | 3000Vrms |
| Contact/Contact: | 3000Vrms |
| Opening Contact: | 1500Vrms |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Operating Temperature: | -25...+70°C |
| Weight Approx.: | 30g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V] | [V] | mW | [W] | |
| V23050A_ | 24 | 18 | 2,4 | 1200 | 480 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||
| |||||
| Norms |
| Forcibly guided contacts according to EN50205. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
Stregkode:
103967
Intern reference:
103967
Varekode:
V23050A1024A542
