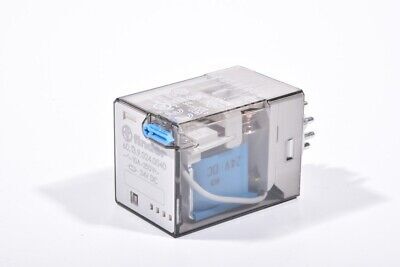

Ind. Relay 3PDT 10A 48Vdc1770R 60.13.9.048.0040
Varenummer:
103-957
Varekode:
F6013-48
Vægt:
90 g
Lagerstatus:
Ikke på lager
Gruppe:
E6641
FINDER Industrial Relays
Series: 60.13

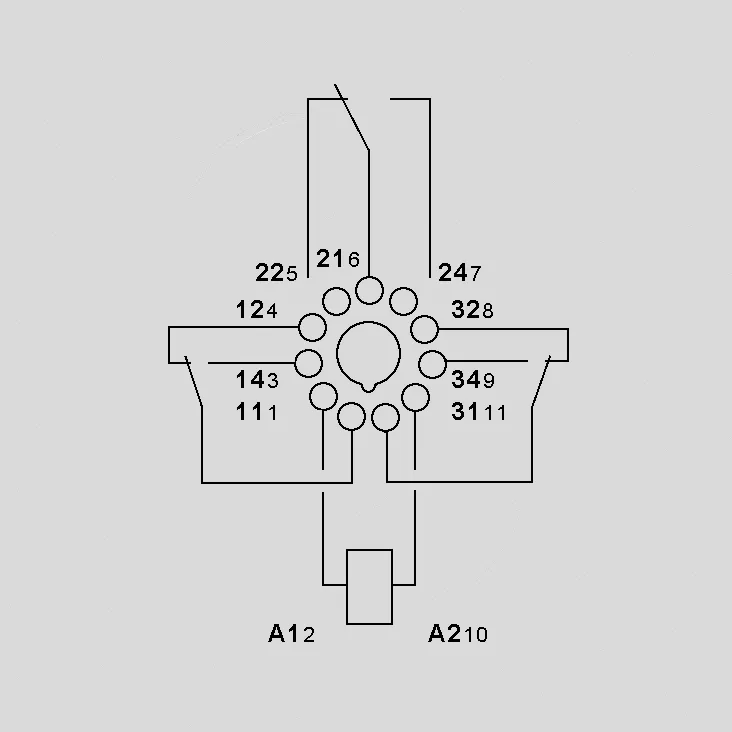

Contact: 3PDT
Rated Current: 10A
Housing: 36,4x32,5x51,0mm
V9115-F206
| Features |
| • Lockable test button with mechanical flag indicator • F6013-AC230L: lockable test button and LED (for AC) • Relays protection class RTI |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||
| Contact: | 3PDT | Contact Material: | AgNi | Rated Current: | 10A | Max. Switching Current: | 20A | Max. Switching Voltage: | 400V AC | Max. Switching Power: | 2500VA | Operate/Release Time: | 9/9ms | Testing Voltage | Coil/Contact: | 3600V | Opening Contact: | 1000V | Lifetime | Mechanical (AC/DC): | 20x106 / 50x106 Cycles | Electrical: | 200x103 Cycles | Operating Temperature: | -40...+70°C | ||||
|
|||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN | F6013-_ | [V DC/AC] | [V] | [V] | [mA] | [mW/VA] | [W] | 06 | 6 | 4,8 | 6,6 | 214 | 1300 | 28 | 12 | 12 | 9,6 | 13,2 | 109 | 1300 | 110 | 24 | 24 | 19,2 | 26,4 | 53,9 | 1300 | 445 | 48 | 48 | 38,4 | 52,8 | 27,1 | 1300 | 1770 | 60 | 60 | 48 | 66 | 21,7 | 1300 | 2760 | AC120 | 120 | 96 | 132 | 18,6 | 2,2 | 1940 | AC230 | 230 | 184 | 253 | 10,5 | 2,2 | 7250 | AC230L | 230 | 184 | 253 | 10,5 | 2,2 | 7250 | |||||||
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • For assembly using a F9003 terminal socket for DIN-rail assembly, please see product group E6645. |
|
| Labelling |
 |
|
| Approvals |
     |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
