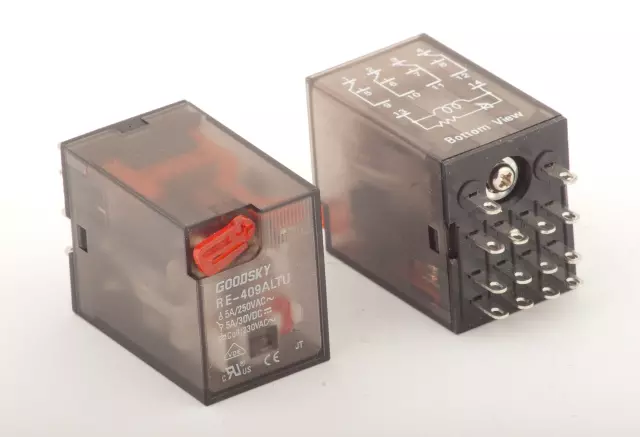

Ind. Relay 4PDT 5A 230VAC 13,6k LED Red
Varenummer:
103-953
Varekode:
RE409A-LTU
Vægt:
40 g
Lagerstatus:
Ikke på lager
Gruppe:
E6624
GOODSKY Industrial Relays
Series: RE
Contact: 4PDT
Rated Current: 5A

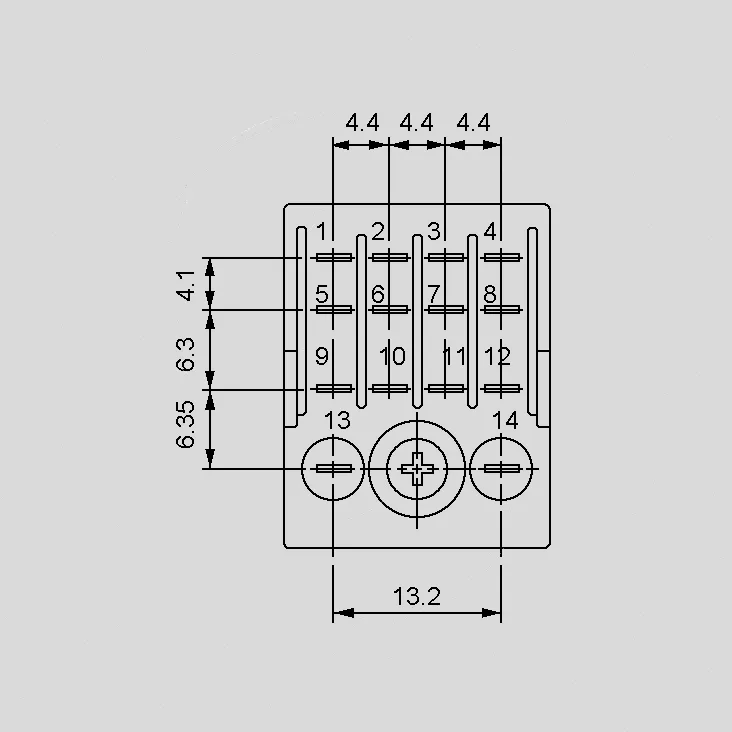

Housing: 27,6x21,1x36,0mm
GOODSKY Industrial Relays
Series: RE
Contact: 4PDT
Rated Current: 5A
Housing: 27,6x21,1x36,0mm
| Features |
| • Lockable test button • Mechanical flag indicator • With LED • Solder/Plug-in terminal 2,6x0,5mm • Relays protection class RTI |
 |
| Technical Spezifications |
| |
| Contact: | 4PDT |
| Contact Material: | Ag Alloy |
| Rated Current: | 5A |
| Max. Switching Current: | 5A |
| Max. Switching Voltage: | 250V AC |
| Max. Switching Power: | 600VA |
| Operate/Release Time: | 25/25ms |
| Testing Voltage | |
| Coil/Contact: | 1500V |
| Contact/Contact: | 1000V |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -25...+55°C |
| Weight Approx.: | 35g |
| |
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb | IN | PN | RN |
| RE_ | [V DC/AC] | [V] | [V] | [V] | [mA] | [mW/VA] | [W] |
| 402D-LTU | 12 | 13,2 | 9,6 | 1,2 | 75 | 900 | 160 |
| 403D-LTU | 24 | 26,4 | 19,2 | 2,4 | 36,9 | 900 | 650 |
| 409A-LTU | 230 | 253 | 184 | 69 | 7 | 1,6 | 13600 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||
| |||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| GOODSKY http://www.goodsky.com.tw |
|
Stregkode:
103953
Intern reference:
103953
Varekode:
RE409A-LTU
