Ind. Relay 4PDT 7A 24V 600R LED Au F5534-24LD
Varenummer:
103-948
Varekode:
55.34.9.024.0090
Vægt:
40 g
Lagerstatus:
Ikke på lager
Gruppe:
E6623
FINDER Industrial Relays
Series: 55
Contact: DPDT or 4PDT
Rated Current: 10A and 7A

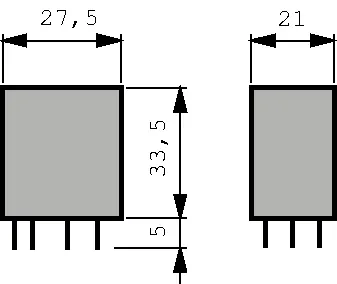

Housing: 27,7x20,7x37,2mm.
Features
| • Lockable test button and mechanical flag indicator • F5534-24LD: Lockable test button and LED • Solder/plug-in terminals 2,0x0,5mm • Relays protection class RTI |
 |
| Technical Specifications |
|
|
| Contact | |
| F5532-_: | DPDT |
| F5534-_: | 4PDT |
| Contact Material | |
| F5532-_/34-_: | AgNi |
| F5534-_G: | AgNi+Au (5µm) |
| Rated Current | |
| F5532-_: | 10A |
| F5534-_: | 7A |
| Max. Switching Current | |
| F5532-_: | 20A |
| F5534-_: | 15A |
| Max. Switching Voltage | |
| F5532-_: | 400V AC |
| F5534-_: | 250V AC |
| Max. Switching Power | |
| F5532-_: | 2500VA |
| F5534-_: | 1750VA |
| Operate/Release Time | |
| F5532-_: | 10/5ms |
| F5534-_: | 11/3ms |
| Testing Voltage | |
| Coil/Contact: | 4000V |
| Opening Contact: | 1000V |
| Lifetime | |
| Mechanical (AC/DC): | 20x106 / 50x106 Operations |
| Electrical | |
| F5532-_: | 200x103 Operations |
| F5534-_: | 150x103 Operations |
| Operating Temperature: | -40...+85°C |
|
|
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN |
| F55_ | [V] | [V] | [V] | [mA] | [mW/VA] | Ohm |
| 32-24 | 24V DC | 19,2 | 26,4 | 40 | 1000 | 600 |
| 32-AC230 | 230V AC | 184 | 253 | 6 | 1,5 | 17000 |
| 34-12 | 12V DC | 9,6 | 13,2 | 86 | 1000 | 140 |
| 34-24_ | 24V DC | 19,2 | 26,4 | 40 | 1000 | 600 |
| 34-AC230_ | 230V AC | 184 | 253 | 6,3 | 1,5 | 17000 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||
|
||||||
| Note |
| • Assembly by direct soldering in the PCB or • Terminal socket F9414 with retaining clip F09451, see product group E6625, or • Screw socket DIN-rail assembly F9474 (with retaining clip F09471) or F94843 (with retaining clip F09491), see product group E6625 |
|
| Labelling |
 |
|
| Approvals |
         |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
