Relay 24V DPDT 8A 1440R LED
Varenummer:
103-943
Varekode:
XT484-LC4
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe:
E6616
TE Industrial Relays
Series: XT
Contact: SPDT or DPDT
Rated Current: 16A and 8A

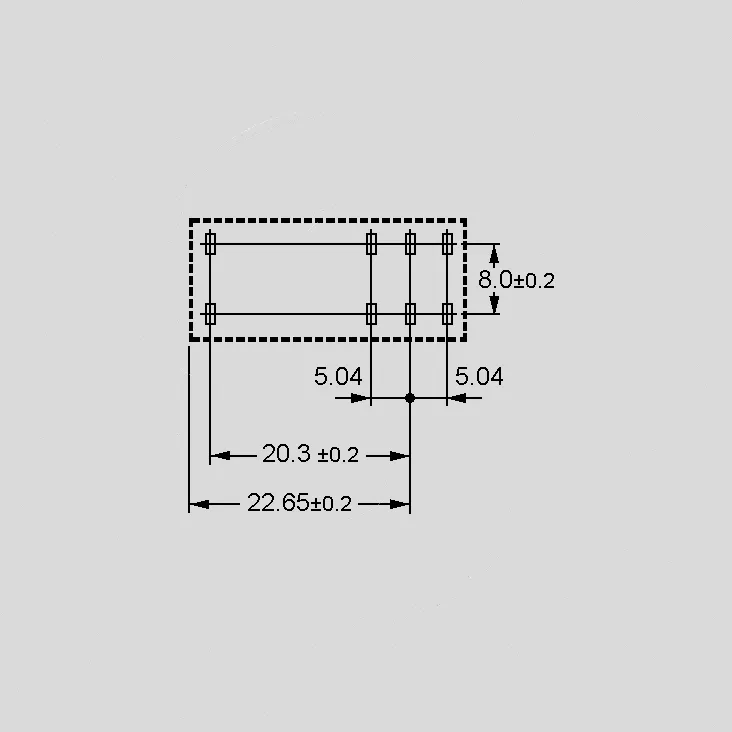

Housing: 29,0x13,7x25,6mm
E6616
TE Industrial Relays
Series: XT
Contact: SPDT or DPDT
Rated Current: 16A and 8A
Housing: 29,0x13,7x25,6mm
| Features |
| • Industrial Relays with Solder/plug-in terminals • Versions with AC coil or 400mW sensitive DC coil • 4kV/8mm coil-contact • Relays protection class RTII |
 |
| Technical Specifications |
| |
| Contact | |
| XT374_: | SPDT |
| XT484_: | DPDT |
| Contact Material: | AgNi 90/10 |
| Rated Current | |
| XT374_: | 16A |
| XT484_: | 8A |
| Max. Switching Current | |
| XT374_: | 30A |
| XT484_: | 15A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power | |
| XT374_: | 4000VA |
| XT484_: | 2000VA |
| Creepage/Clearance: | ³8/8mm |
| Operate/Release Time: | 9/6ms |
| Testing Voltage | |
| Coil/Contact: | 4000Vrms |
| Contact/Contact: | 2500Vrms |
| Opening Contact: | 1000Vrms |
| Lifetime | |
| Mechanical (DC): | >10x106 Cycles |
| Mechanical (AC): | >5x106 Cycles |
| Operating Temperature: | -40...+70°C |
| Weight Approx.: | 16g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC/AC] | [V] | [V] | [mW/VA] | [W] | |
| XT374-LC4 | 24 | 16,8 | 2,4 | 400 | 1440 |
| XT374-T30 | 230 | 172,5 | 34,5 | 0,74 | 32500 |
| XT484-LC4 | 24 | 16,8 | 2,4 | 400 | 1440 |
| XT484-T30 | 230 | 172,5 | 34,5 | 0,74 | 32500 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||
| |||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
